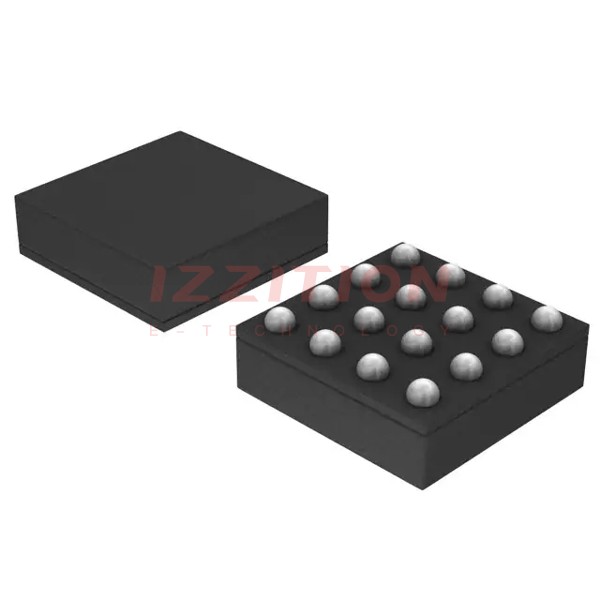

| Part Number | NBSG11BAHTBG | NBSG14BAHTBG | NBSG111BAHTBG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Fanout Buffer (Distribution) | Fanout Buffer (Distribution), Data | Fanout Buffer (Distribution), Multiplexer, Data |
| Number of Circuits | 1 | 1 | 1 |
| Ratio - Input:Output | 1:2 | 1:4 | 2:10 |
| Differential - Input:Output | Yes/Yes | Yes/Yes | Yes/Yes |
| Input | CML, LVCMOS, LVDS, LVTTL, NECL, RSNECL, PECL | CML, LVCMOS, LVDS, LVTTL, NECL, PECL, RSECL | CML, ECL, LVCMOS, LVDS, LVTTL, NECL, PECL |
| Output | RSECL, RSNECL, RSPECL | RSECL, RSNECL, RSPECL | RSECL, RSNECL, RSPECL |
| Frequency - Max | 12 GHz | 12 GHz | 6 GHz |
| Voltage - Supply | 2.375V ~ 3.465V | 2.375V ~ 3.465V | 2.375V ~ 3.465V |
| Operating Temperature | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-LBGA, FCBGA | 16-LBGA, FCBGA | 49-LFBGA, FCBGA |
| Supplier Device Package | 16-FCBGA (4x4) | 16-FCBGA (4x4) | 49-FCBGA (8x8) |
