onsemi-NB2309AC1HD - Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers Product Specifications and Latest Quotes

Part Number	NB2309AC1HD	NB2309AC1HDG	NB2309AC1HDT	NB2309AI1HD	NB2305AC1HD	NB2308AC1HD	NB2309AC1D
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Type	Zero Delay Buffer	Zero Delay Buffer	Zero Delay Buffer	Zero Delay Buffer	Zero Delay Buffer	Zero Delay Buffer	Zero Delay Buffer
PLL	Yes with Bypass	Yes with Bypass	Yes with Bypass	Yes with Bypass	Yes	Yes with Bypass	Yes with Bypass
Input	Clock	Clock	Clock	Clock	Clock	Clock	Clock
Output	Clock	Clock	Clock	Clock	Clock	Clock	Clock
Number of Circuits	1	1	1	1	1	1	1
Ratio - Input:Output	1:9	1:9	1:9	1:9	1:5	1:8	1:9
Differential - Input:Output	No/No	No/No	No/No	No/No	No/No	No/No	No/No
Frequency - Max	133.33MHz	133.33MHz	133.33MHz	133.33MHz	133.33MHz	133.3MHz	133.33MHz
Divider/Multiplier	No/No	No/No	No/No	No/No	No/No	No/No	No/No
Voltage - Supply	3V ~ 3.6V	3V ~ 3.6V	3V ~ 3.6V	3V ~ 3.6V	3V ~ 3.6V	3V ~ 3.6V	3V ~ 3.6V
Operating Temperature	0°C ~ 70°C	0°C ~ 70°C	0°C ~ 70°C	-40°C ~ 85°C	0°C ~ 70°C	0°C ~ 70°C	0°C ~ 70°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)	16-SOIC (0.154", 3.90mm Width)	16-TSSOP (0.173", 4.40mm Width)	16-SOIC (0.154", 3.90mm Width)	8-SOIC (0.154", 3.90mm Width)	16-SOIC (0.154", 3.90mm Width)	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC	16-SOIC	16-TSSOP	16-SOIC	8-SOIC	16-SOIC	16-SOIC

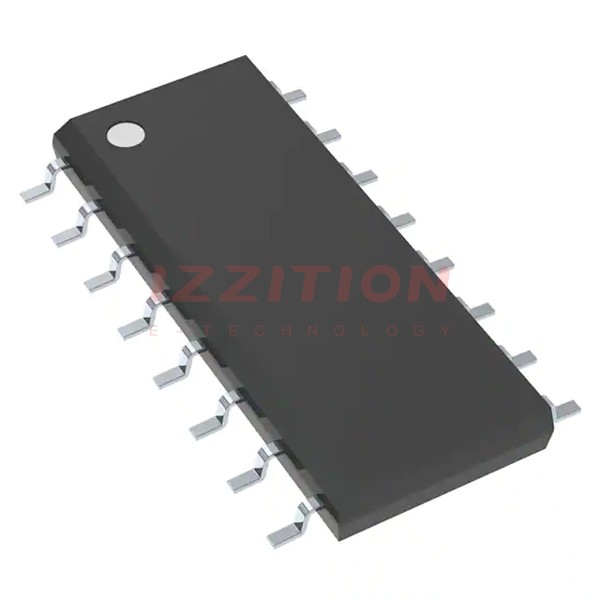

onsemi NB2309AC1HD
