Please send RFQ , we will respond immediately.
| Part Number | NB100LVEP222FAG | NB100LVEP224FAG | NB100LVEP222FARG | NB100LVEP221FAG | NB100LVEP222FA |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Fanout Buffer (Distribution), Divider, Multiplexer | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Divider, Multiplexer | Fanout Buffer (Distribution), Multiplexer | Fanout Buffer (Distribution), Divider, Multiplexer |
| Number of Circuits | 1 | 1 | 1 | 1 | - |
| Ratio - Input:Output | 1:15 | 2:24 | 1:15 | 2:20 | 1:15 |
| Differential - Input:Output | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | - |
| Input | LVECL, LVPECL | ECL, LVDS, LVPECL, NECL, PECL | LVECL, LVPECL | ECL, HSTL, LVPECL | - |
| Output | LVECL, LVPECL | ECL, PECL | LVECL, LVPECL | ECL, PECL | - |
| Frequency - Max | 1 GHz | 1 GHz | 1 GHz | 1 GHz | - |
| Voltage - Supply | 2.375V ~ 3.8V | 2.375V ~ 3.8V | 2.375V ~ 3.8V | 2.375V ~ 3.8V | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

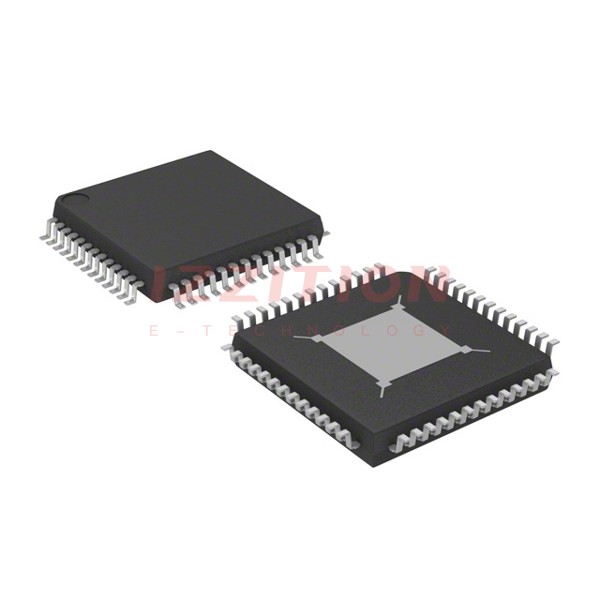

| Package / Case | 52-LQFP Exposed Pad | 64-LQFP Exposed Pad | 52-LQFP Exposed Pad | 52-LQFP Exposed Pad | 52-LQFP Exposed Pad |
| Supplier Device Package | 52-LQFP (10x10) | 64-LQFP (10x10) | 52-LQFP (10x10) | 52-LQFP (10x10) | 52-LQFP (10x10) |
