| Part Number | MURP20040CTG | MURP20020CTG | MURP20040CT |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 300 V | 400 V |
| Current - Average Rectified (Io) (per Diode) | 100A | 100A | 100A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 100 A | 1 V @ 100 A | 1.3 V @ 100 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 75 ns | 50 ns | 75 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 400 V | 150 µA @ 300 V | 50 µA @ 400 V |
| Operating Temperature - Junction | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |

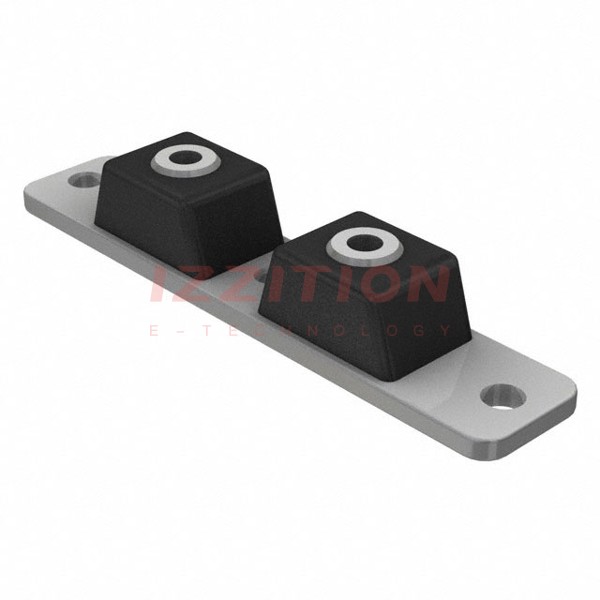

| Package / Case | Powertap II | Powertap II | Powertap II |
| Supplier Device Package | Powertap II | Powertap II | Powertap II |
