onsemi-MUR810G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	MUR810G	MUR820G	MUR860G	MUR815G	MUR840G	MUR810
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	Harris Corporation
Product Status	Active	Active	Active	Active	Active	Obsolete
Diode Type	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	100 V	200 V	600 V	150 V	400 V	100 V
Current - Average Rectified (Io)	8A	8A	8A	8A	8A	8A
Voltage - Forward (Vf) (Max) @ If	975 mV @ 8 A	975 mV @ 8 A	1.5 V @ 8 A	975 mV @ 8 A	1.3 V @ 8 A	975 mV @ 8 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	35 ns	35 ns	60 ns	35 ns	60 ns	35 ns
Current - Reverse Leakage @ Vr	5 µA @ 100 V	5 µA @ 200 V	10 µA @ 600 V	5 µA @ 150 V	10 µA @ 400 V	5 µA @ 100 V
Capacitance @ Vr, F	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-220-2	TO-220-2	TO-220-2	TO-220-2	TO-220-2	TO-220-2
Supplier Device Package	TO-220-2	TO-220-2	TO-220-2	TO-220-2	TO-220-2	TO-220-2
Operating Temperature - Junction	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	8A
Voltage - Forward (Vf) (Max) @ If:	975 mV @ 8 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	35 ns
Current - Reverse Leakage @ Vr:	5 µA @ 100 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	TO-220-2
Operating Temperature - Junction:	-65°C ~ 175°C

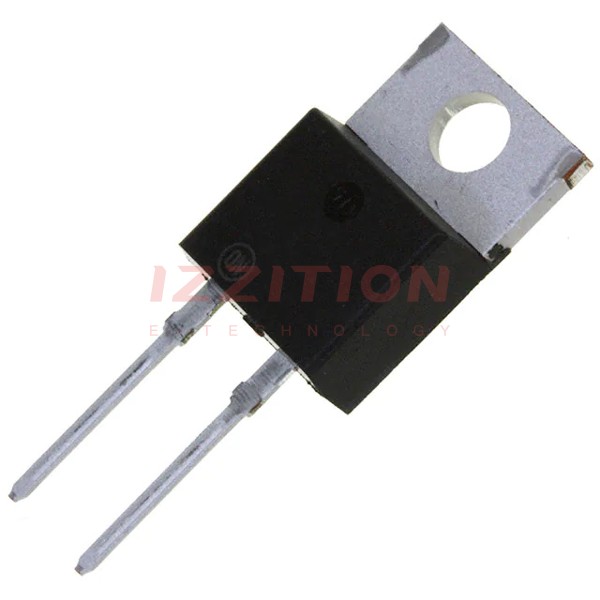

onsemi MUR810G
