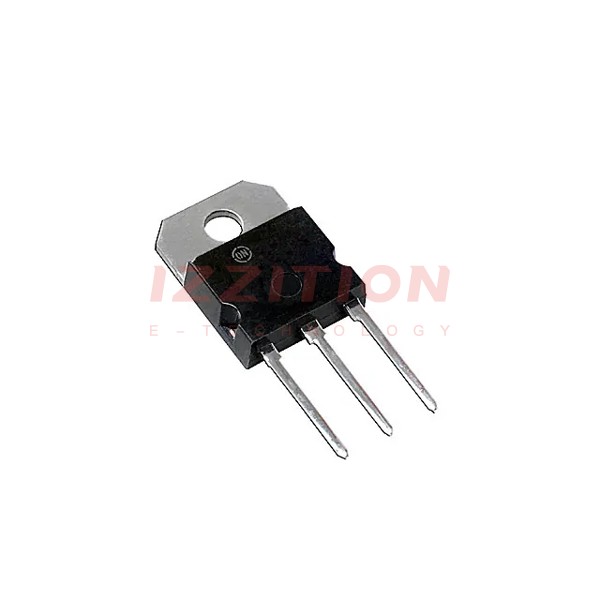

| Part Number | MUR3060PT | MUR3060WT | MUR3060PTG | MUR3020PT | MUR3040PT |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | Harris Corporation |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V | 200 V | 400 V |
| Current - Average Rectified (Io) (per Diode) | 15A | 15A | 15A | 15A | 15A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 15 A | 1.7 V @ 15 A | 1.5 V @ 15 A | 1.05 V @ 15 A | 1.25 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns | 60 ns | 60 ns | 35 ns | 60 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V | 10 µA @ 600 V | 10 µA @ 600 V | 10 µA @ 200 V | 10 µA @ 400 V |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-218-3 | TO-247-3 | TO-218-3 | TO-218-3 | TO-218-3 |
| Supplier Device Package | SOT-93 | TO-247-3 | SOT-93 | SOT-93 | SOT-93 |
