onsemi-MUR1560G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	MUR1560G	MUR160G	MUR1560H	MUR1510G	MUR1520G	MUR1540G	MUR1560
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Active	Active	Obsolete	Obsolete	Active	Active	Obsolete
Diode Type	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	600 V	600 V	600 V	100 V	200 V	400 V	600 V
Current - Average Rectified (Io)	15A	1A	15A	15A	15A	15A	15A
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 15 A	1.25 V @ 1 A	1.5 V @ 15 A	1.05 V @ 15 A	1.05 V @ 15 A	1.25 V @ 15 A	1.5 V @ 15 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	60 ns	75 ns	60 ns	35 ns	35 ns	60 ns	60 ns
Current - Reverse Leakage @ Vr	10 µA @ 600 V	5 µA @ 600 V	10 µA @ 600 V	10 µA @ 100 V	10 µA @ 200 V	10 µA @ 400 V	10 µA @ 600 V
Capacitance @ Vr, F	-	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-220-2	DO-204AL, DO-41, Axial	TO-220-2	TO-220-2	TO-220-2	TO-220-2	TO-220-2
Supplier Device Package	TO-220-2	Axial	TO-220-2	TO-220-2	TO-220-2	TO-220-2	TO-220-2
Operating Temperature - Junction	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	15A
Voltage - Forward (Vf) (Max) @ If:	1.5 V @ 15 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	60 ns
Current - Reverse Leakage @ Vr:	10 µA @ 600 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	TO-220-2
Operating Temperature - Junction:	-65°C ~ 175°C

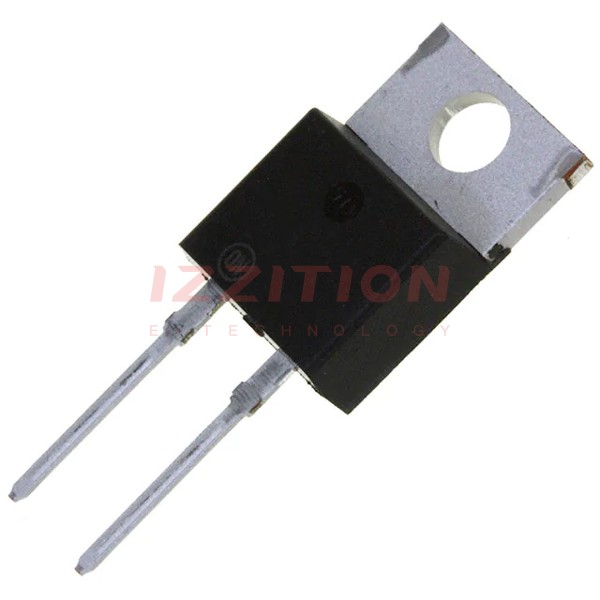

onsemi MUR1560G
