onsemi-MUR1540 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	MUR1540	MUR1540G	MUR1560	MUR140	MUR1510	MUR1520
Manufacturer	onsemi	onsemi	onsemi	Diotec Semiconductor	Harris Corporation	Vishay General Semiconductor - Diodes Division
Product Status	Obsolete	Active	Obsolete	Active	Obsolete	Obsolete
Diode Type	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	400 V	400 V	600 V	400 V	100 V	200 V
Current - Average Rectified (Io)	15A	15A	15A	1A	15A	15A
Voltage - Forward (Vf) (Max) @ If	1.25 V @ 15 A	1.25 V @ 15 A	1.5 V @ 15 A	1.25 V @ 1 A	1.05 V @ 15 A	1.05 V @ 15 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	60 ns	60 ns	60 ns	75 ns	35 ns	35 ns
Current - Reverse Leakage @ Vr	10 µA @ 400 V	10 µA @ 400 V	10 µA @ 600 V	5 µA @ 400 V	10 µA @ 100 V	10 µA @ 200 V
Capacitance @ Vr, F	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-220-2	TO-220-2	TO-220-2	DO-204AC, DO-41, Axial	TO-220-2	TO-220-2
Supplier Device Package	TO-220-2	TO-220-2	TO-220-2	DO-41/DO-204AC	TO-220-2	TO-220AC
Operating Temperature - Junction	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-50°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	400 V
Current - Average Rectified (Io):	15A
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 15 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	60 ns
Current - Reverse Leakage @ Vr:	10 µA @ 400 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	TO-220-2
Operating Temperature - Junction:	-65°C ~ 175°C

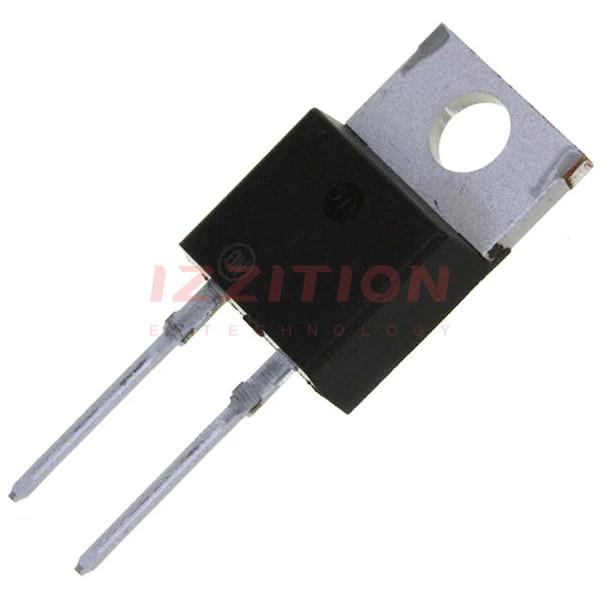

onsemi MUR1540
