Please send RFQ , we will respond immediately.

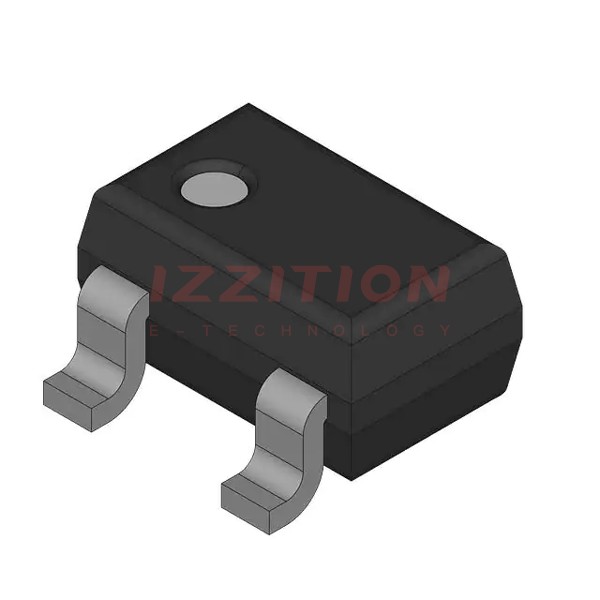

| Part Number | MUN5136T1G | MUN5137T1G | MUN5138T1G | MUN5236T1G | MUN2136T1G | MUN5116T1G | MUN5130T1G | MUN5131T1G | MUN5132T1G | MUN5133T1G | MUN5134T1G | MUN5135T1G | MUN5136T1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Transistor Type | - | PNP - Pre-Biased | PNP - Pre-Biased | NPN - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | - | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | - | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| Resistor - Base (R1) | - | 47 kOhms | 2.2 kOhms | 100 kOhms | 100 kOhms | 4.7 kOhms | 1 kOhms | 2.2 kOhms | 4.7 kOhms | 4.7 kOhms | 22 kOhms | 2.2 kOhms | 100 kOhms |
| Resistor - Emitter Base (R2) | - | 22 kOhms | - | 100 kOhms | 100 kOhms | - | 1 kOhms | 2.2 kOhms | 4.7 kOhms | 47 kOhms | 47 kOhms | 47 kOhms | 100 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | 80 @ 5mA, 10V | 160 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 160 @ 5mA, 10V | 3 @ 5mA, 10V | 8 @ 5mA, 10V | 15 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | - | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 1mA, 10mA | 250mV @ 5mA, 10mA | 250mV @ 5mA, 10mA | 250mV @ 1mA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 1mA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | - | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA |
| Frequency - Transition | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Power - Max | - | 202 mW | 202 mW | 202 mW | 230 mW | 202 mW | 202 mW | 202 mW | 202 mW | 202 mW | 202 mW | 202 mW | 202 mW |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | TO-236-3, SC-59, SOT-23-3 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 |
| Supplier Device Package | - | SC-70-3 (SOT323) | SC-70-3 (SOT323) | SC-70-3 (SOT323) | SC-59 | SC-70-3 (SOT323) | SC-70-3 (SOT323) | SC-70-3 (SOT323) | SC-70-3 (SOT323) | SC-70-3 (SOT323) | SC-70-3 (SOT323) | SC-70-3 (SOT323) | SC-70-3 (SOT323) |
