Please send RFQ , we will respond immediately.

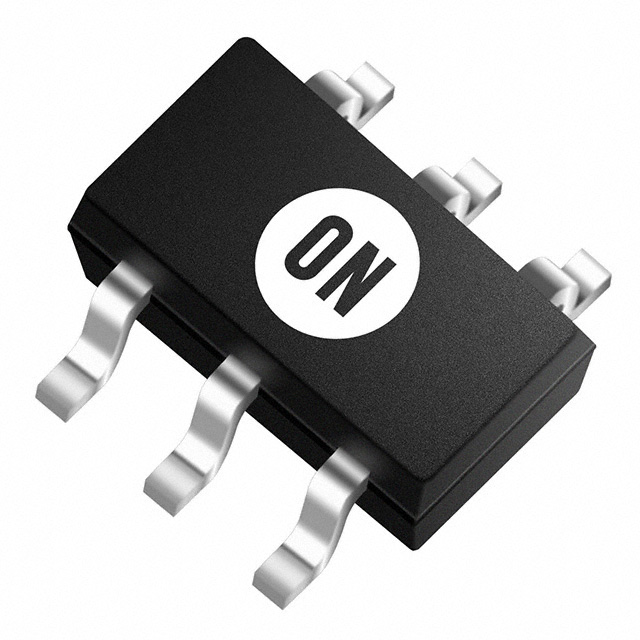

| Part Number | MUN5133DW1T1G | MUN5233DW1T1G | MUN5135DW1T1G | MUN5333DW1T1G | MUN5134DW1T1G | MUN5136DW1T1G | MUN5137DW1T1G | MUN5113DW1T1G | MUN5130DW1T1G | MUN5131DW1T1G | MUN5132DW1T1G | MUN5133DW1T1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active | Obsolete |
| Transistor Type | 2 PNP - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | - | 2 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA | 100mA | - | 100mA | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V | 50V | 50V | 50V | 50V | - | 50V | 50V | 50V | 50V |
| Resistor - Base (R1) | 4.7kOhms | 4.7kOhms | 2.2kOhms | 4.7kOhms | 22kOhms | 100kOhms | 47kOhms | - | 1kOhms | 2.2kOhms | 4.7kOhms | 4.7kOhms |
| Resistor - Emitter Base (R2) | 47kOhms | 47kOhms | 47kOhms | 47kOhms | 47kOhms | 100kOhms | 22kOhms | - | 1kOhms | 2.2kOhms | 4.7kOhms | 47kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V | - | 3 @ 5mA, 10V | 8 @ 5mA, 10V | 15 @ 5mA, 10V | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA | 250mV @ 1mA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 1mA, 10mA | 250mV @ 1mA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 5mA, 10mA | - | 250mV @ 5mA, 10mA | 250mV @ 5mA, 10mA | 250mV @ 1mA, 10mA | 250mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA | - | 500nA | 500nA | 500nA | 500nA |
| Frequency - Transition | - | - | - | - | - | - | - | - | - | - | - | - |
| Power - Max | 250mW | 250mW | 250mW | 250mW | 250mW | 250mW | 250mW | - | 250mW | 250mW | 250mW | 385mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | - | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 | - | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 | SC-88/SC70-6/SOT-363 |
