onsemi-MR851RLG - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	MR851RLG	MR854RLG	MR852RLG	MR856RLG	MR751RLG	MR851RL
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Active	Active	Obsolete	Active	Obsolete	Obsolete
Diode Type	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	100 V	400 V	200 V	600 V	100 V	100 V
Current - Average Rectified (Io)	3A	3A	3A	3A	6A	3A
Voltage - Forward (Vf) (Max) @ If	1.25 V @ 3 A	1.25 V @ 3 A	1.25 V @ 3 A	1.25 V @ 3 A	900 mV @ 6 A	1.25 V @ 3 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	300 ns	300 ns	300 ns	300 ns	-	300 ns
Current - Reverse Leakage @ Vr	10 µA @ 100 V	10 µA @ 400 V	10 µA @ 200 V	10 µA @ 600 V	25 µA @ 100 V	10 µA @ 100 V
Capacitance @ Vr, F	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-201AA, DO-27, Axial	DO-201AA, DO-27, Axial	DO-201AA, DO-27, Axial	DO-201AA, DO-27, Axial	Button, Axial	DO-201AA, DO-27, Axial
Supplier Device Package	Axial	Axial	Axial	Axial	Microde Button	Axial
Operating Temperature - Junction	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 175°C	-65°C ~ 125°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	3A
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 3 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	300 ns
Current - Reverse Leakage @ Vr:	10 µA @ 100 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	DO-201AA, DO-27, Axial
Supplier Device Package:	Axial
Operating Temperature - Junction:	-65°C ~ 125°C

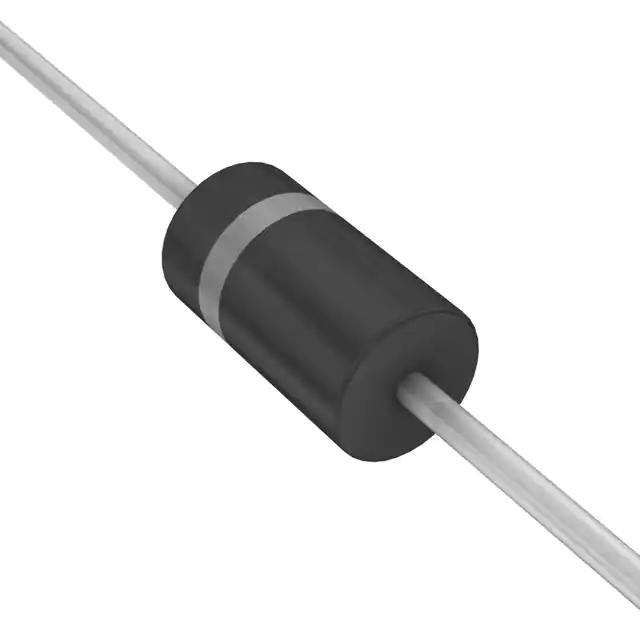

onsemi MR851RLG
