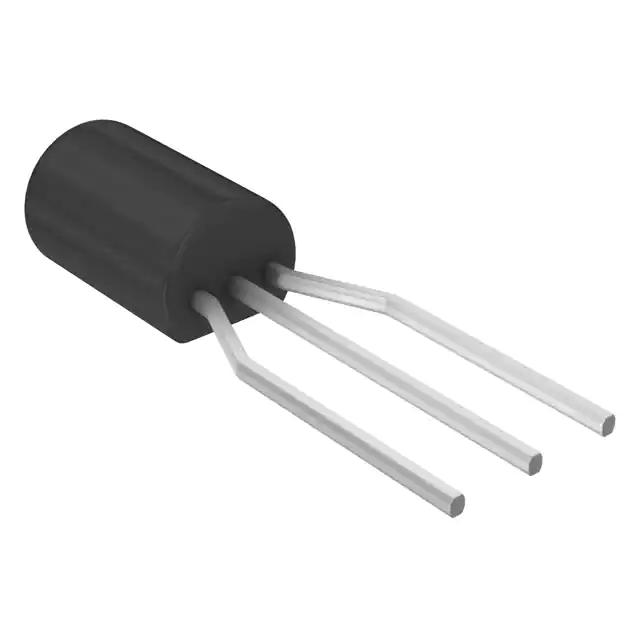

| Part Number | MPSW92G | MPSW42G | MPSW92 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP | NPN | PNP |
| Current - Collector (Ic) (Max) | 500 mA | 500 mA | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 300 V | 300 V | 300 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 2mA, 20mA | 500mV @ 2mA, 20mA | 500mV @ 2mA, 20mA |
| Current - Collector Cutoff (Max) | 250nA (ICBO) | 100nA (ICBO) | 250nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 30mA, 10V | 40 @ 30mA, 10V | 25 @ 30mA, 10V |
| Power - Max | 1 W | 1 W | 1 W |
| Frequency - Transition | 50MHz | 50MHz | 50MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) |
