| Part Number | MPSW63RLRAG | MPSW13RLRAG | MPSW63RLRA |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP - Darlington | NPN - Darlington | PNP - Darlington |
| Current - Collector (Ic) (Max) | 500 mA | 1 A | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V | 30 V | 30 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 100µA, 100mA | 1.5V @ 100µA, 100mA | 1.5V @ 100µA, 100mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 10000 @ 100mA, 5V | 10000 @ 100mA, 5V | 10000 @ 100mA, 5V |
| Power - Max | 1 W | 1 W | 1 W |
| Frequency - Transition | 125MHz | 125MHz | 125MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

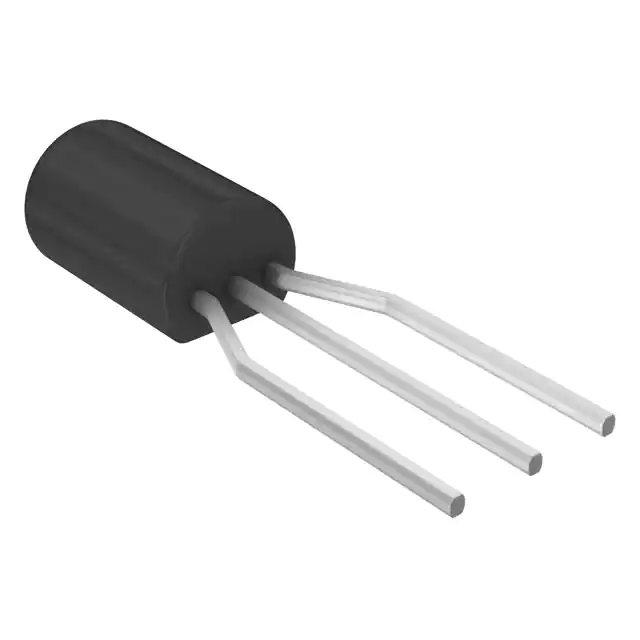

| Package / Case | TO-226-3, TO-92-3 Long Body (Formed Leads) | TO-226-3, TO-92-3 Long Body (Formed Leads) | TO-226-3, TO-92-3 Long Body (Formed Leads) |
| Supplier Device Package | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) |
