onsemi-MPSW55 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	MPSW55	MPSW56	MPSW55G	MPSW05	MPSW45	MPSW51
Manufacturer	onsemi	Fairchild Semiconductor	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Transistor Type	PNP	PNP	PNP	NPN	NPN - Darlington	PNP
Current - Collector (Ic) (Max)	500 mA	1 A	500 mA	500 mA	1 A	1 A
Voltage - Collector Emitter Breakdown (Max)	60 V	80 V	60 V	60 V	40 V	30 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 10mA, 250mA	500mV @ 10mA, 250mA	500mV @ 10mA, 250mA	400mV @ 10mA, 250mA	1.5V @ 2mA, 1A	700mV @ 100mA, 1A
Current - Collector Cutoff (Max)	500nA	500nA	500nA	500nA	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 250mA, 1V	50 @ 250mA, 1V	50 @ 250mA, 1V	60 @ 250mA, 1V	25000 @ 200mA, 5V	160 @ 100mA, 1V
Power - Max	1 W	1 W	1 W	1 W	1 W	1 W
Frequency - Transition	50MHz	50MHz	50MHz	50MHz	100MHz	50MHz
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 (TO-226AA)	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body
Supplier Device Package	TO-92 (TO-226)	TO-226-3	TO-92 (TO-226)	TO-92 (TO-226)	TO-92 (TO-226)	TO-92 (TO-226)

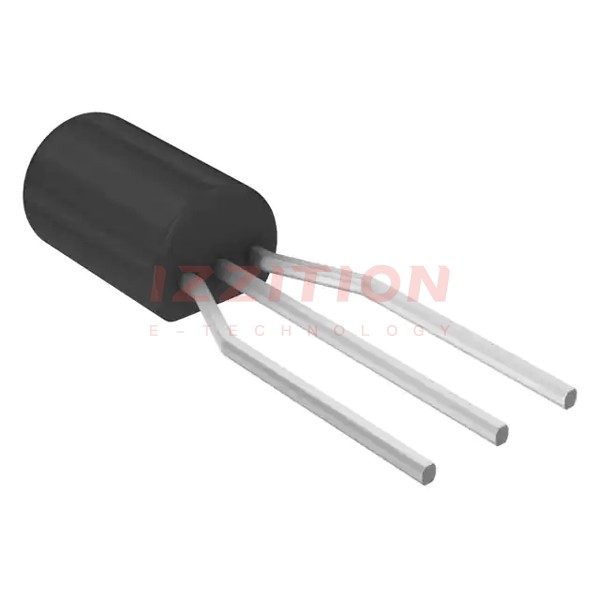

onsemi MPSW55

Transistor Type:	PNP
Current - Collector (Ic) (Max):	500 mA
Voltage - Collector Emitter Breakdown (Max):	60 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 10mA, 250mA
Current - Collector Cutoff (Max):	500nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	50 @ 250mA, 1V
Power - Max:	1 W
Frequency - Transition:	50MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 Long Body
Supplier Device Package:	TO-92 (TO-226)
