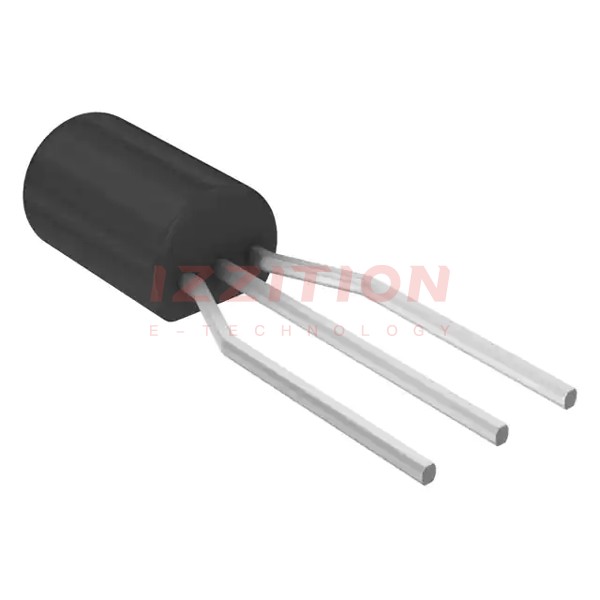

| Part Number | MPSW45G | MPSW55G | MPSW05G | MPSW42G | MPSW45 | MPSW45A | MPSW45AG |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN - Darlington | PNP | NPN | NPN | NPN - Darlington | NPN - Darlington | NPN - Darlington |
| Current - Collector (Ic) (Max) | 1 A | 500 mA | 500 mA | 500 mA | 1 A | 1 A | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 60 V | 60 V | 300 V | 40 V | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 2mA, 1A | 500mV @ 10mA, 250mA | 400mV @ 10mA, 250mA | 500mV @ 2mA, 20mA | 1.5V @ 2mA, 1A | 1.5V @ 2mA, 1A | 1.5V @ 2mA, 1A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 500nA | 500nA | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25000 @ 200mA, 5V | 50 @ 250mA, 1V | 60 @ 250mA, 1V | 40 @ 30mA, 10V | 25000 @ 200mA, 5V | 25000 @ 200mA, 5V | 25000 @ 200mA, 5V |
| Power - Max | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W |
| Frequency - Transition | 100MHz | 50MHz | 50MHz | 50MHz | 100MHz | 100MHz | 100MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) |
