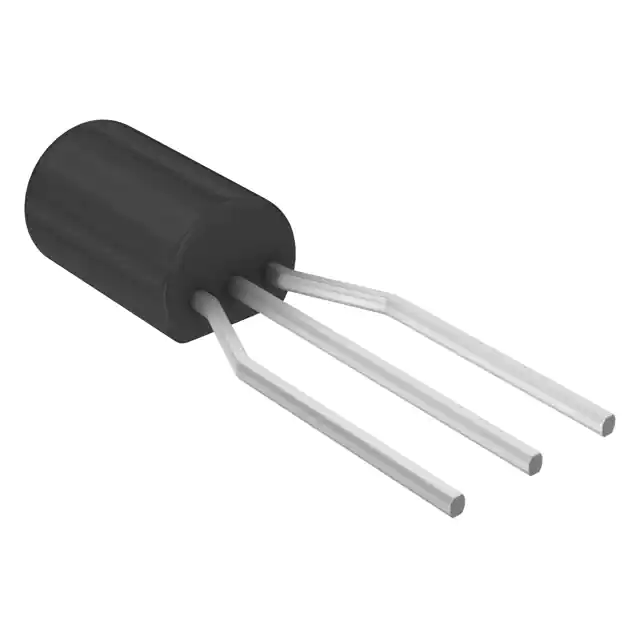

| Part Number | MPSW06G | MPSW01G | MPSW05G | MPSW06 |
|---|---|---|---|---|
| Manufacturer | onsemi | Sanyo | onsemi | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 500 mA | 1 A | 500 mA | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 80 V | 30 V | 60 V | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 10mA, 250mA | 500mV @ 100mA, 1A | 400mV @ 10mA, 250mA | 400mV @ 10mA, 250mA |
| Current - Collector Cutoff (Max) | 500nA | 100nA (ICBO) | 500nA | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 250mA, 1V | 60 @ 100mA, 1V | 60 @ 250mA, 1V | 100 @ 100mA, 1V |
| Power - Max | 1 W | 1 W | 1 W | 1 W |
| Frequency - Transition | 50MHz | 50MHz | 50MHz | 50MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body (Formed Leads) | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) | TO-92-3 |
