| Part Number | MPSW01ARLRPG | MPSW51ARLRPG | MPSW01ARLRAG | MPSW01ARLRP |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | PNP | NPN | NPN |
| Current - Collector (Ic) (Max) | 1 A | 1 A | 1 A | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 40 V | 40 V | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 100mA, 1A | 700mV @ 100mA, 1A | 500mV @ 100mA, 1A | 500mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 100mA, 1V | 60 @ 100mA, 1V | 60 @ 100mA, 1V | 60 @ 100mA, 1V |
| Power - Max | 1 W | 1 W | 1 W | 1 W |
| Frequency - Transition | 50MHz | 50MHz | 50MHz | 50MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |

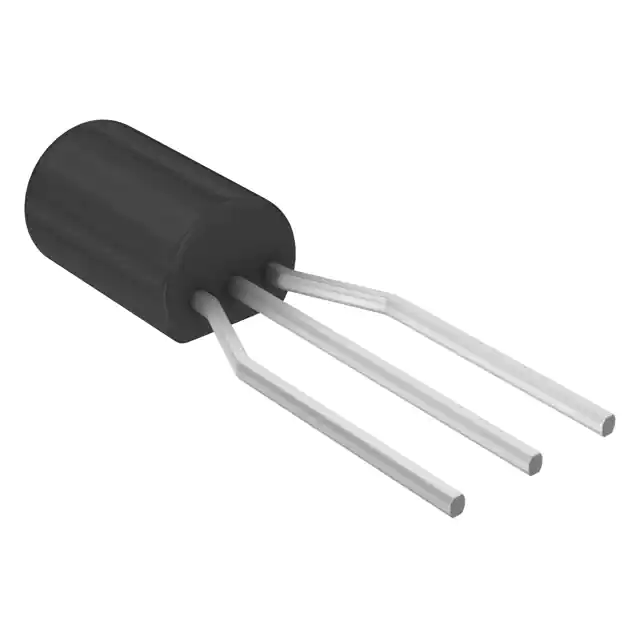

| Package / Case | TO-226-3, TO-92-3 Long Body (Formed Leads) | TO-226-3, TO-92-3 Long Body (Formed Leads) | TO-226-3, TO-92-3 Long Body (Formed Leads) | TO-226-3, TO-92-3 Long Body (Formed Leads) |
| Supplier Device Package | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) |
