onsemi-MPSW01A - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	MPSW01A	MPSW01G	MPSW51A	MPSW01AG	MPSW01
Manufacturer	onsemi	Sanyo	onsemi	onsemi	Fairchild Semiconductor
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Transistor Type	NPN	NPN	PNP	NPN	NPN
Current - Collector (Ic) (Max)	1 A	1 A	1 A	1 A	1 A
Voltage - Collector Emitter Breakdown (Max)	40 V	30 V	40 V	40 V	30 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 100mA, 1A	500mV @ 100mA, 1A	700mV @ 100mA, 1A	500mV @ 100mA, 1A	500mV @ 100mA, 1A
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 100mA, 1V	60 @ 100mA, 1V	60 @ 100mA, 1V	60 @ 100mA, 1V	50 @ 1A, 1V
Power - Max	1 W	1 W	1 W	1 W	1 W
Frequency - Transition	50MHz	50MHz	50MHz	50MHz	50MHz
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body (Formed Leads)	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body
Supplier Device Package	TO-92 (TO-226)	TO-92 (TO-226)	TO-92 (TO-226)	TO-92 (TO-226)	TO-92 (TO-226)

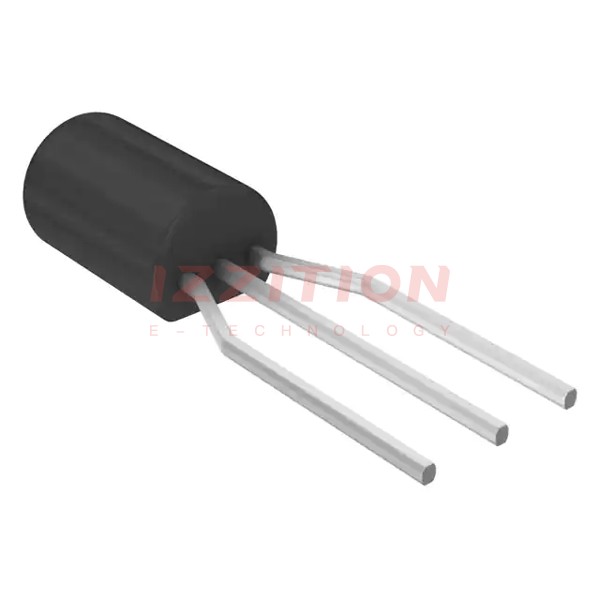

onsemi MPSW01A

Transistor Type:	NPN
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	40 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 100mA, 1A
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	60 @ 100mA, 1V
Power - Max:	1 W
Frequency - Transition:	50MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 Long Body
Supplier Device Package:	TO-92 (TO-226)
