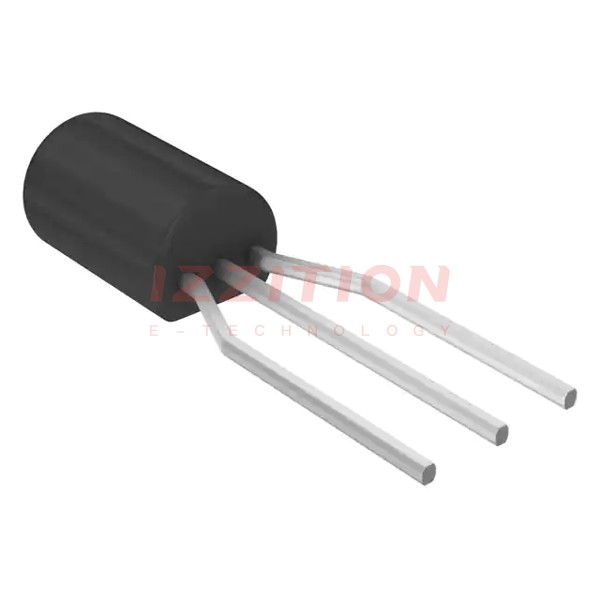

onsemi-MPS6726G - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	MPS6726G	MPS6727G	MPS6729G	MPS6724G	MPS6725G	MPS6726
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Transistor Type	PNP	PNP	PNP	NPN - Darlington	NPN - Darlington	PNP
Current - Collector (Ic) (Max)	1 A	1 A	500 mA	1 A	1 A	1 A
Voltage - Collector Emitter Breakdown (Max)	30 V	40 V	80 V	40 V	50 V	30 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 100mA, 1A	500mV @ 100mA, 1A	500mV @ 10mA, 250mA	1.5V @ 2mA, 1A	1.5V @ 2mA, 1A	500mV @ 100mA, 1A
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 1A, 1V	50 @ 1A, 1V	50 @ 250mA, 1V	4000 @ 1A, 5V	4000 @ 1A, 5V	50 @ 1A, 1V
Power - Max	1 W	1 W	1 W	1 W	1 W	1 W
Frequency - Transition	-	-	-	1GHz	1GHz	-
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body
Supplier Device Package	TO-92 (TO-226)	TO-92 (TO-226)	TO-92 (TO-226)	TO-92 (TO-226)	TO-92 (TO-226)	TO-92 (TO-226)

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	30 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 100mA, 1A
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	50 @ 1A, 1V
Power - Max:	1 W
Frequency - Transition:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 Long Body
Supplier Device Package:	TO-92 (TO-226)

onsemi MPS6726G
