onsemi-MPS6726 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	MPS6726	MPS6727	MPS6726G	MPS6729	MPS6724	MPS6725
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Transistor Type	PNP	PNP	PNP	PNP	NPN - Darlington	NPN - Darlington
Current - Collector (Ic) (Max)	1 A	1 A	1 A	500 mA	1 A	1 A
Voltage - Collector Emitter Breakdown (Max)	30 V	40 V	30 V	80 V	40 V	50 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 100mA, 1A	500mV @ 100mA, 1A	500mV @ 100mA, 1A	500mV @ 10mA, 250mA	1.5V @ 2mA, 1A	1.5V @ 2mA, 1A
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 1A, 1V	50 @ 1A, 1V	50 @ 1A, 1V	50 @ 250mA, 1V	4000 @ 1A, 5V	4000 @ 1A, 5V
Power - Max	1 W	1 W	1 W	1 W	1 W	1 W
Frequency - Transition	-	-	-	-	1GHz	1GHz
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body	TO-226-3, TO-92-3 Long Body
Supplier Device Package	TO-92 (TO-226)	TO-92 (TO-226)	TO-92 (TO-226)	TO-92 (TO-226)	TO-92 (TO-226)	TO-92 (TO-226)

Transistor Type:	PNP
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	30 V
Vce Saturation (Max) @ Ib, Ic:	500mV @ 100mA, 1A
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	50 @ 1A, 1V
Power - Max:	1 W
Frequency - Transition:	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 Long Body
Supplier Device Package:	TO-92 (TO-226)

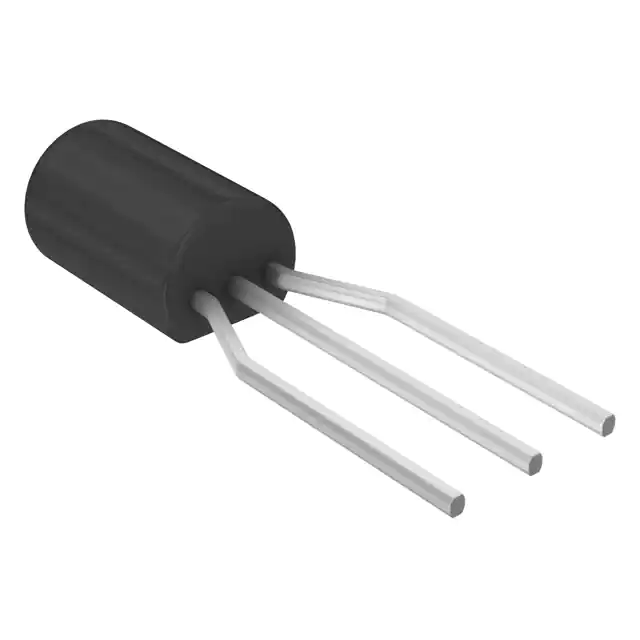

onsemi MPS6726
