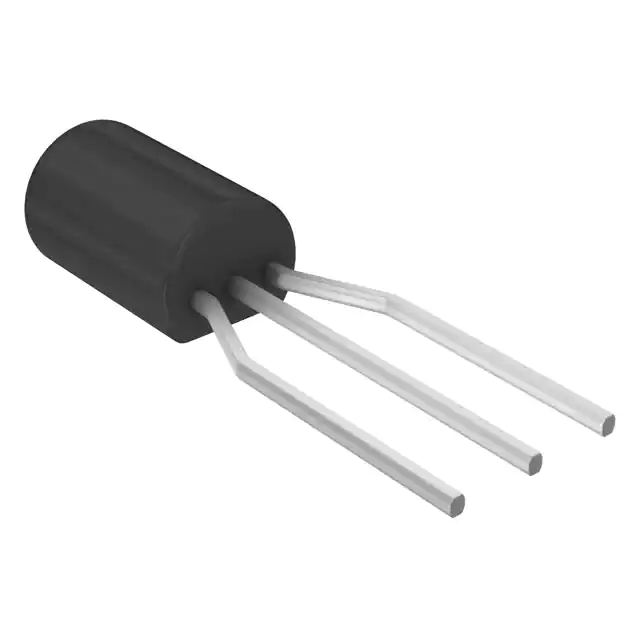

| Part Number | MPS6725G | MPS6727G | MPS6726G | MPS6729G | MPS6724G | MPS6725 |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN - Darlington | PNP | PNP | PNP | NPN - Darlington | NPN - Darlington |
| Current - Collector (Ic) (Max) | 1 A | 1 A | 1 A | 500 mA | 1 A | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 40 V | 30 V | 80 V | 40 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 2mA, 1A | 500mV @ 100mA, 1A | 500mV @ 100mA, 1A | 500mV @ 10mA, 250mA | 1.5V @ 2mA, 1A | 1.5V @ 2mA, 1A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 4000 @ 1A, 5V | 50 @ 1A, 1V | 50 @ 1A, 1V | 50 @ 250mA, 1V | 4000 @ 1A, 5V | 4000 @ 1A, 5V |
| Power - Max | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W |
| Frequency - Transition | 1GHz | - | - | - | 1GHz | 1GHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) | TO-92 (TO-226) |
