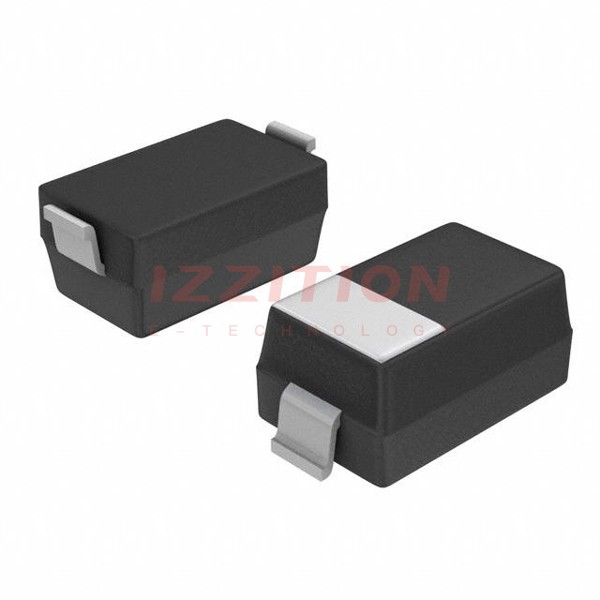

onsemi-MMSZ5246BT1 - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	MMSZ5246BT1	MMSZ5246BT1G	MMSZ5248BT1	MMSZ5247BT1	MMSZ5246ET1	MMSZ5246BT3	MMSZ5249BT1	MMSZ5243BT1	MMSZ5244BT1	MMSZ5245BT1
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Obsolete	Active	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Voltage - Zener (Nom) (Vz)	16 V	16 V	18 V	17 V	16 V	16 V	19 V	13 V	14 V	15 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	17 Ohms	17 Ohms	21 Ohms	19 Ohms	17 Ohms	17 Ohms	23 Ohms	13 Ohms	15 Ohms	16 Ohms
Current - Reverse Leakage @ Vr	100 nA @ 12 V	100 nA @ 12 V	100 nA @ 14 V	100 nA @ 13 V	100 nA @ 12 V	100 nA @ 12 V	100 nA @ 14 V	500 nA @ 9.9 V	100 nA @ 10 V	100 nA @ 11 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA
Operating Temperature	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SOD-123	SOD-123	SOD-123	SOD-123	SOD-123	SOD-123	SOD-123	SOD-123	SOD-123	SOD-123
Supplier Device Package	SOD-123	SOD-123	SOD-123	SOD-123	SOD-123	SOD-123	SOD-123	SOD-123	SOD-123	SOD-123

onsemi MMSZ5246BT1
