onsemi-MMSZ5241B - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	MMSZ5241B	MMSZ5244B	MMSZ5243B	MMSZ5242B	MMSZ5241BS	MMSZ5240B
Manufacturer	onsemi	Fairchild Semiconductor	Fairchild Semiconductor	SMC Diode Solutions	Rectron USA	SMC Diode Solutions
Product Status	Obsolete	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	11 V	14 V	13 V	12 V	11 V	10 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	22 Ohms	15 Ohms	13 Ohms	30 Ohms	17 Ohms	17 Ohms
Current - Reverse Leakage @ Vr	2 µA @ 8.4 V	100 nA @ 10 V	500 nA @ 9.9 V	1 µA @ 9 V	-	3 µA @ 8 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	-	900 mV @ 10 mA
Operating Temperature	-55°C ~ 150°C	-55°C ~ 150°C	150°C (TJ)	-55°C ~ 150°C (TJ)	-	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SOD-123	SOD-123	SOD-123	SOD-123	SC-76, SOD-323	SOD-123
Supplier Device Package	SOD-123	SOD-123	SOD-123	SOD-123	SOD-323	SOD-123

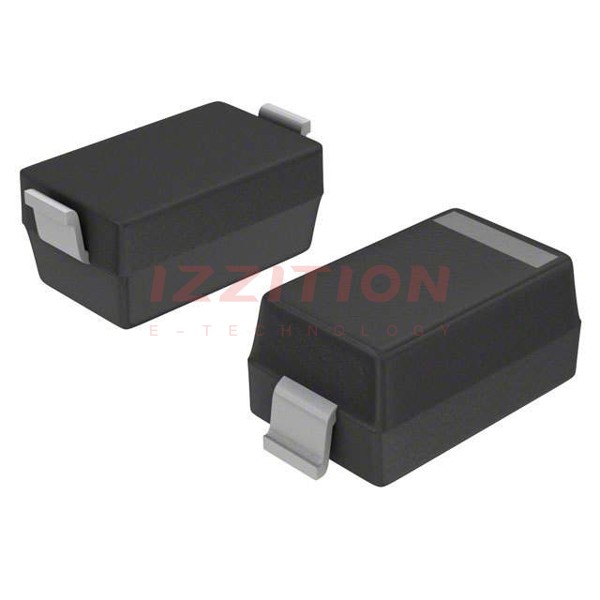

onsemi MMSZ5241B
