onsemi-MMSZ5226B - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	MMSZ5226B	MMSZ5229B	MMSZ5228B	MMSZ5226BS	MMSZ5221B	MMSZ5223B	MMSZ5225B
Manufacturer	onsemi	Fairchild Semiconductor	Fairchild Semiconductor	Rectron USA	Rectron USA	Rectron USA	SMC Diode Solutions
Product Status	Obsolete	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	3.3 V	4.3 V	3.9 V	3.3 V	2.4 V	2.7 V	3 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	28 Ohms	23 Ohms	24 Ohms	30 Ohms	30 Ohms	30 Ohms	30 Ohms
Current - Reverse Leakage @ Vr	25 µA @ 1 V	5 µA @ 1 V	10 µA @ 1 V	-	-	-	50 µA @ 1 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	-	-	-	900 mV @ 10 mA
Operating Temperature	-55°C ~ 150°C	-	-	-	-	-	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SOD-123	SOD-123F	SOD-123F	SC-76, SOD-323	SOD-123	SOD-123	SOD-123
Supplier Device Package	SOD-123	SOD-123F	SOD-123F	SOD-323	SOD-123	SOD-123	SOD-123

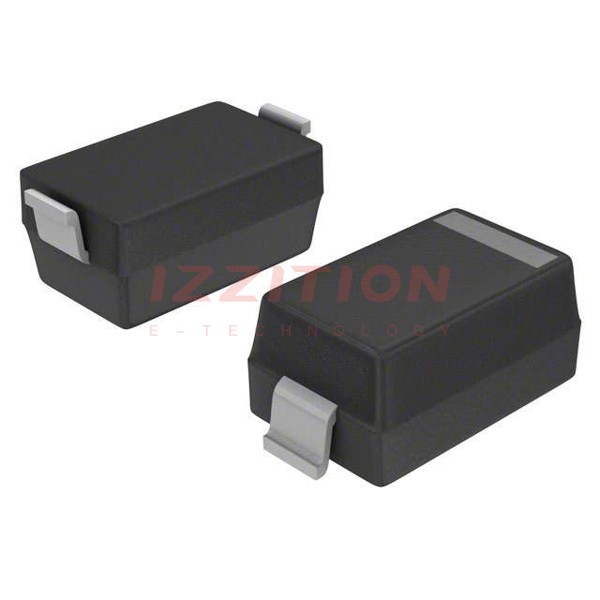

onsemi MMSZ5226B
