Please send RFQ , we will respond immediately.
| Part Number | MMSZ4703 | MMSZ4706 | MMSZ4705 | MMSZ4704 | MMSZ4708 | MMSZ4703T | MMSZ4707 | MMSZ4709 | MMSZ4700 | MMSZ4701 | MMSZ4702 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | Rectron USA | Rectron USA | Rectron USA | Rectron USA | Rectron USA | Rectron USA | Rectron USA | Rectron USA | Fairchild Semiconductor |
| Product Status | Obsolete | Obsolete | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 16 V | 19 V | 18 V | 17 V | 22 V | 16 V | 20 V | 24 V | 13 V | 14 V | 15 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 300 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | - | - | - | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 50 nA @ 12.1 V | 50 nA @ 14.4 V | 50 nA @ 13.6 V | 50 nA @ 12.9 V | 10 nA @ 16.7 V | 50 nA @ 12.1 V | 10 nA @ 15.2 V | 10 nA @ 18.2 V | 50 nA @ 9.8 V | 50 nA @ 10.6 V | 50 nA @ 11.4 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

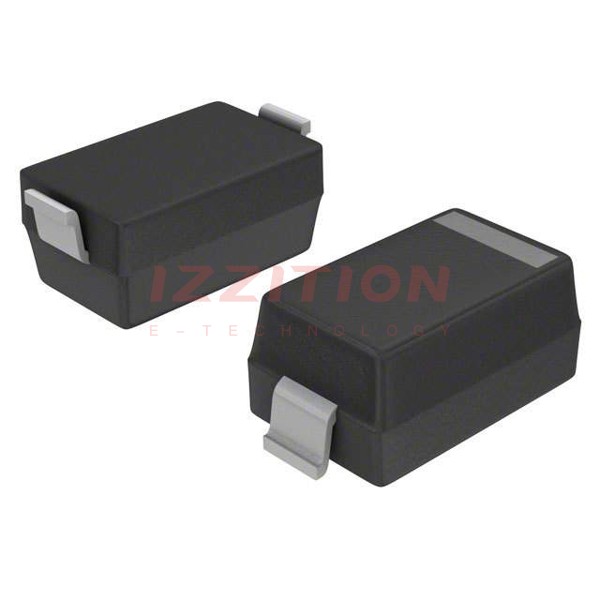

| Package / Case | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SC-79, SOD-523 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 |
| Supplier Device Package | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-523 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 |
