Please send RFQ , we will respond immediately.

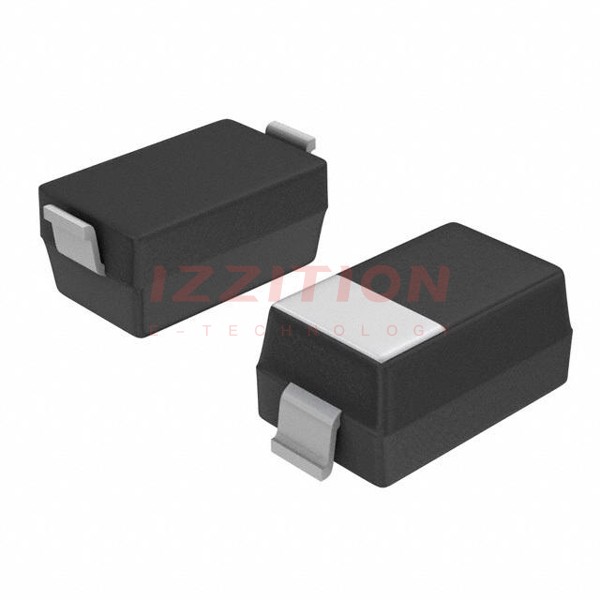

| Part Number | MMSZ4701T1 | MMSZ4701T1G | MMSZ4705T1 | MMSZ4702T1 | MMSZ4703T1 | MMSZ4706T1 | MMSZ4704T1 | MMSZ4707T1 | MMSZ4708T1 | MMSZ4709T1 | MMSZ4700T1 | MMSZ4701ET1 | MMSZ4701T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | Rectron USA |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Voltage - Zener (Nom) (Vz) | 14 V | 14 V | 18 V | 15 V | 16 V | 19 V | 17 V | 20 V | 22 V | 24 V | 13 V | 14 V | 14 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 300 mW |
| Impedance (Max) (Zzt) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 50 nA @ 10.6 V | 50 nA @ 10.6 V | 50 nA @ 13.6 V | 50 nA @ 11.4 V | 50 nA @ 12.1 V | 50 nA @ 14.4 V | 50 nA @ 12.9 V | 10 nA @ 15.2 V | 10 nA @ 16.7 V | 10 nA @ 18.2 V | 50 nA @ 9.8 V | 50 nA @ 10.6 V | 50 nA @ 10.6 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SC-79, SOD-523 |
| Supplier Device Package | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-123 | SOD-523 |
