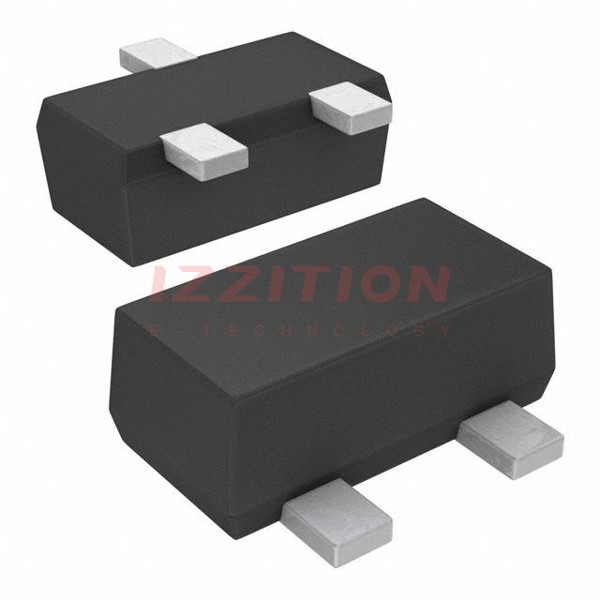

| Part Number | MMBT3904T | MMBT3906T | MMBT3904 | MMBT3904K |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | NTE Electronics, Inc | onsemi |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Transistor Type | NPN | PNP | NPN | NPN |
| Current - Collector (Ic) (Max) | 200 mA | 200 mA | 200 mA | 200 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 40 V | 40 V | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA | 400mV @ 5mA, 50mA | 300mV @ 5mA, 50mA | 300mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | - | - | - | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V | 100 @ 10mA, 1V | 100 @ 10mA, 1V | 100 @ 10mA, 1V |
| Power - Max | 250 mW | 250 mW | 350 mW | 350 mW |
| Frequency - Transition | 300MHz | 250MHz | 300MHz | 300MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-89, SOT-490 | SC-89, SOT-490 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-89-3 | SC-89-3 | SOT-23-3 | SOT-23-3 |
