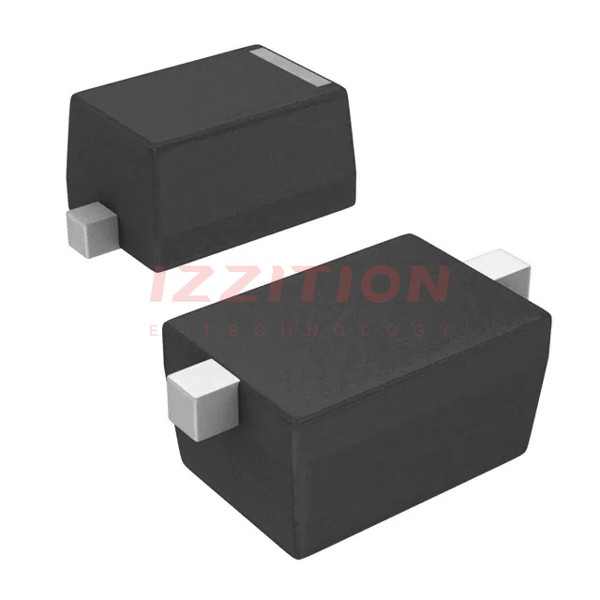

| Part Number | MM5Z13V | MM5Z18V | MM5Z16V | MM5Z33V | MM5Z15V | MM5Z11V | MM5Z12V | MM5Z13 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | Fairchild Semiconductor | onsemi | Fairchild Semiconductor | onsemi | onsemi | onsemi | Diotec Semiconductor |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 13 V | 18 V | 16 V | 33 V | 15 V | 11 V | 12 V | 13 V |
| Tolerance | ±6% | ±6% | ±6% | ±6.06% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW |
| Impedance (Max) (Zzt) | 30 Ohms | 45 Ohms | 40 Ohms | 80 Ohms | 30 Ohms | 20 Ohms | 25 Ohms | 30 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 8 V | 50 nA @ 12.6 V | 50 nA @ 11.2 V | 50 nA @ 23.2 V | 50 nA @ 10.5 V | 100 nA @ 8 V | 100 nA @ 8 V | 100 nA @ 8 V |
| Voltage - Forward (Vf) (Max) @ If | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-79, SOD-523F | SC-79, SOD-523F | SC-79, SOD-523F | SC-79, SOD-523 | SC-79, SOD-523F | SC-79, SOD-523F | SC-79, SOD-523F | SC-79, SOD-523 |
| Supplier Device Package | SOD-523F | SOD-523F | SOD-523F | SOD-523F | SOD-523F | SOD-523F | SOD-523F | SOD-523 |
