onsemi-MM3Z22VT1 - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	MM3Z22VT1	MM3Z22VT1G	MM3Z24VT1	MM3Z27VT1	MM3Z12VT1	MM3Z20VT1
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Active	Active	Obsolete	Obsolete	Obsolete	Obsolete
Voltage - Zener (Nom) (Vz)	22 V	22 V	24 V	27 V	12 V	20 V
Tolerance	±5%	±5%	±6%	±7%	±5%	±6%
Power - Max	300 mW	300 mW	200 mW	200 mW	200 mW	200 mW
Impedance (Max) (Zzt)	55 Ohms	55 Ohms	70 Ohms	80 Ohms	25 Ohms	55 Ohms
Current - Reverse Leakage @ Vr	50 nA @ 15.4 V	50 nA @ 15.4 V	50 nA @ 16.8 V	50 nA @ 18.9 V	100 nA @ 8 V	50 nA @ 14 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA
Operating Temperature	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SC-76, SOD-323	SC-76, SOD-323	SC-76, SOD-323	SC-76, SOD-323	SC-76, SOD-323	SC-76, SOD-323
Supplier Device Package	SOD-323	SOD-323	SOD-323	SOD-323	SOD-323	SOD-323

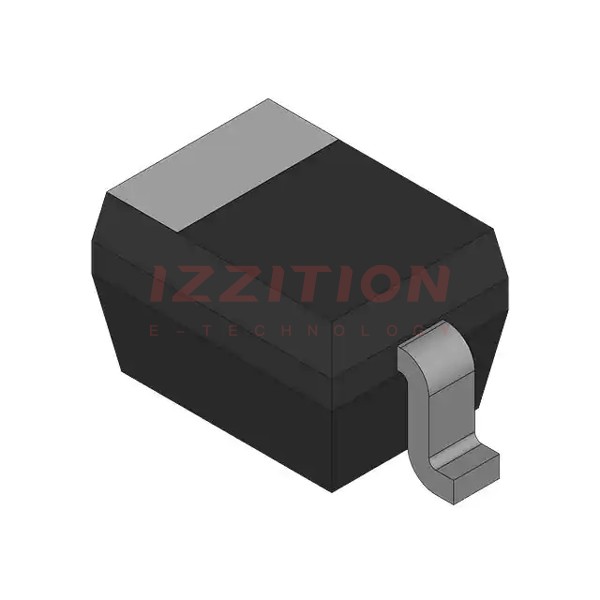

onsemi MM3Z22VT1
