Please send RFQ , we will respond immediately.

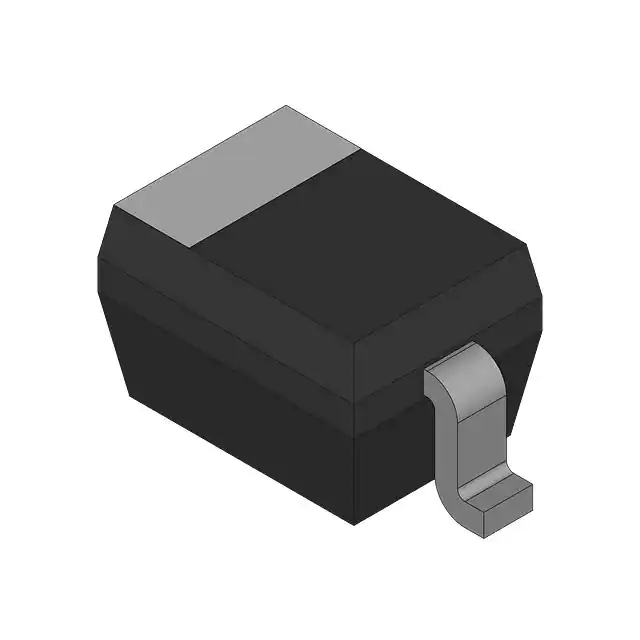

| Part Number | MM3Z10VST1 | MM3Z10VST1G | MM3Z10VT1 | MM3Z12VST1 | MM3Z18VST1 | MM3Z16VST1 |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Voltage - Zener (Nom) (Vz) | - | 10 V | 10 V | 12 V | 18 V | 16.18 V |
| Tolerance | - | ±2% | ±5% | ±2% | ±2% | ±2% |
| Power - Max | - | 300 mW | 200 mW | 200 mW | 200 mW | 200 mW |
| Impedance (Max) (Zzt) | - | 15 Ohms | 20 Ohms | 25 Ohms | 45 Ohms | 40 Ohms |
| Current - Reverse Leakage @ Vr | - | 500 nA @ 6 V | 100 nA @ 8 V | 100 nA @ 8 V | 50 nA @ 12.6 V | 50 nA @ 11.2 V |
| Voltage - Forward (Vf) (Max) @ If | - | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | - | -65°C ~ 150°C (TJ) | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 |
