onsemi-MJL21196G - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	MJL21196G	MJW21196G	MJL21193G	MJL21194G	MJL21195G	MJL21196
Manufacturer	onsemi	onsemi	onsemi	onsemi	onsemi	onsemi
Product Status	Active	Active	Active	Active	Active	Obsolete
Transistor Type	NPN	NPN	PNP	NPN	PNP	NPN
Current - Collector (Ic) (Max)	16 A	16 A	16 A	16 A	16 A	16 A
Voltage - Collector Emitter Breakdown (Max)	250 V	250 V	250 V	250 V	250 V	250 V
Vce Saturation (Max) @ Ib, Ic	4V @ 3.2A, 16A	3V @ 3.2A, 16A	4V @ 3.2A, 16A	4V @ 3.2A, 16A	4V @ 3.2A, 16A	4V @ 3.2A, 16A
Current - Collector Cutoff (Max)	100µA	100µA	100µA	100µA	100µA	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce	25 @ 8A, 5V	20 @ 8A, 5V	25 @ 8A, 5V	25 @ 8A, 5V	25 @ 8A, 5V	25 @ 8A, 5V
Power - Max	200 W	200 W	200 W	200 W	200 W	200 W
Frequency - Transition	4MHz	4MHz	4MHz	4MHz	4MHz	4MHz
Operating Temperature	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-264-3, TO-264AA	TO-247-3	TO-264-3, TO-264AA	TO-264-3, TO-264AA	TO-264-3, TO-264AA	TO-264-3, TO-264AA
Supplier Device Package	TO-264	TO-247-3	TO-264	TO-264	TO-264	TO-264

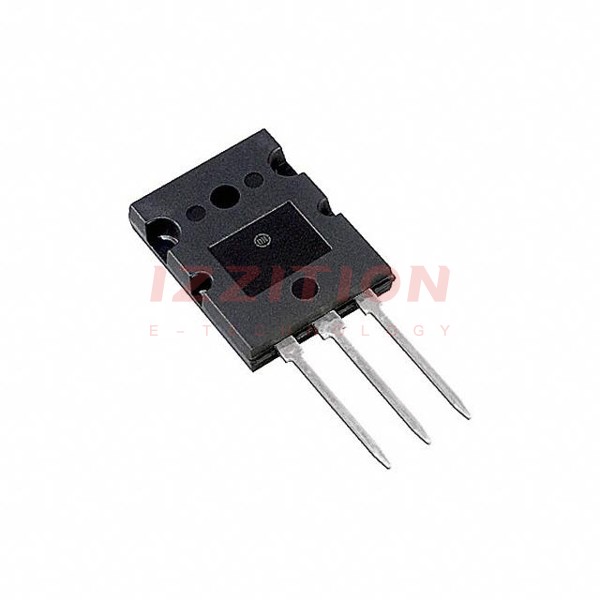

onsemi MJL21196G

Transistor Type:	NPN
Current - Collector (Ic) (Max):	16 A
Voltage - Collector Emitter Breakdown (Max):	250 V
Vce Saturation (Max) @ Ib, Ic:	4V @ 3.2A, 16A
Current - Collector Cutoff (Max):	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	25 @ 8A, 5V
Power - Max:	200 W
Frequency - Transition:	4MHz
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-264-3, TO-264AA
Supplier Device Package:	TO-264
