Please send RFQ , we will respond immediately.

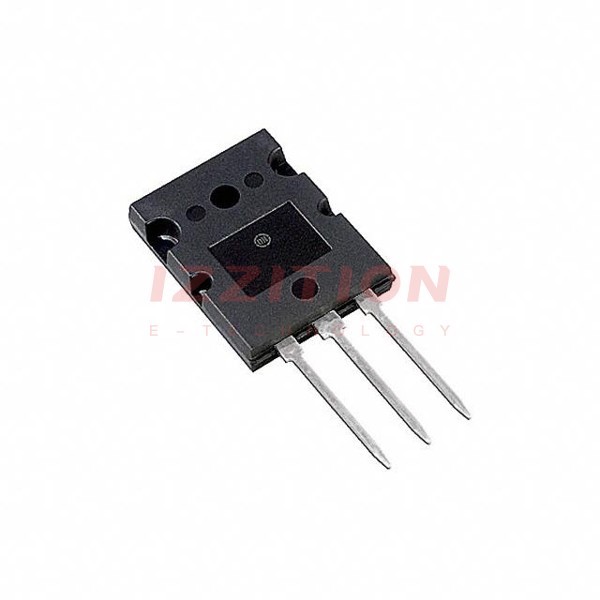

| Part Number | MJL0302AG | MJL1302AG | MJL4302AG | MJW0302AG | MJL0302A |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete |
| Transistor Type | PNP | PNP | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 15 A | 15 A | 15 A | 15 A | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 260 V | 260 V | 350 V | 260 V | 260 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 500mA, 5A | 3V @ 1A, 10A | 1V @ 800mA, 8A | 1V @ 500mA, 5A | 1V @ 500mA, 5A |
| Current - Collector Cutoff (Max) | 10µA (ICBO) | 50µA (ICBO) | 100µA | 10µA (ICBO) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 75 @ 3A, 5V | 75 @ 5A, 5V | 80 @ 5A, 5V | 75 @ 3A, 5V | 75 @ 3A, 5V |
| Power - Max | 180 W | 200 W | 230 W | 150 W | 180 W |
| Frequency - Transition | 30MHz | 30MHz | 35MHz | 30MHz | 30MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-264-3, TO-264AA | TO-264-3, TO-264AA | TO-264-3, TO-264AA | TO-247-3 | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 | TO-264 | TO-264 | TO-247-3 | TO-264 |
