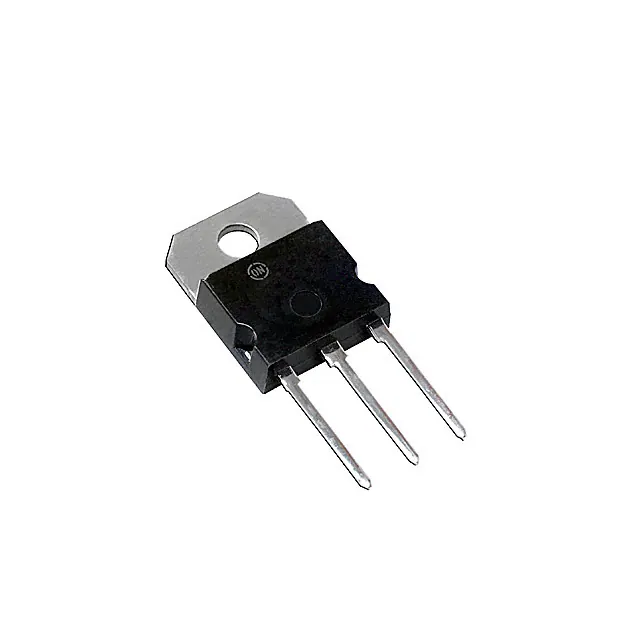

| Part Number | MJH6284 | MJH6284G | MJH6287 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete |
| Transistor Type | NPN - Darlington | NPN - Darlington | PNP - Darlington |
| Current - Collector (Ic) (Max) | 20 A | 20 A | 20 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 100 V | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 200mA, 20A | 3V @ 200mA, 20A | 3V @ 200mA, 20A |
| Current - Collector Cutoff (Max) | 1mA | 1mA | 1mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 10A, 3V | 750 @ 10A, 3V | 750 @ 10A, 3V |
| Power - Max | 160 W | 160 W | 160 W |
| Frequency - Transition | 4MHz | 4MHz | 4MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-218-3 | TO-247-3 | TO-218-3 |
| Supplier Device Package | SOT-93 | TO-247-3 | SOT-93 |
