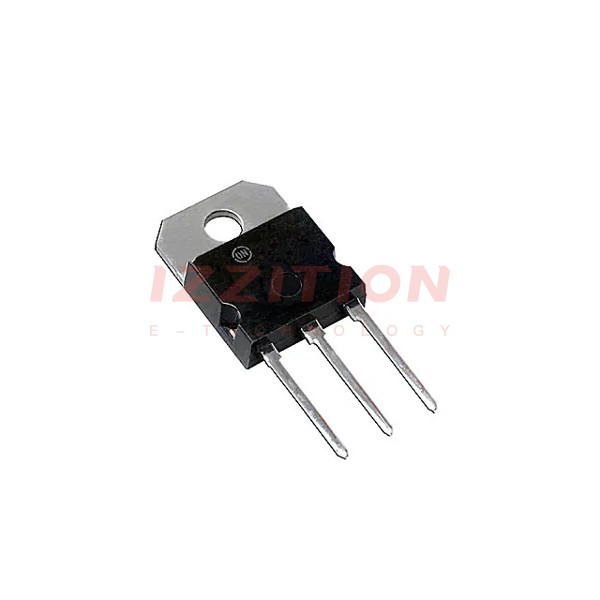

| Part Number | MJH11021 | MJH11021G | MJH11022 | MJH11020 |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Transistor Type | PNP - Darlington | PNP - Darlington | NPN - Darlington | NPN - Darlington |
| Current - Collector (Ic) (Max) | 15 A | 15 A | 15 A | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 250 V | 250 V | 250 V | 200 V |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 150mA, 15A | 4V @ 150mA, 15A | 4V @ 150mA, 15A | 4V @ 150mA, 15A |
| Current - Collector Cutoff (Max) | 1mA | 1mA | 1mA | 1mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 400 @ 10A, 5V | 400 @ 10A, 5V | 400 @ 10A, 5V | 400 @ 10A, 5V |
| Power - Max | 150 W | 150 W | 150 W | 150 W |
| Frequency - Transition | 3MHz | 3MHz | 3MHz | 3MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-218-3 | TO-247-3 | TO-218-3 | TO-218-3 |
| Supplier Device Package | SOT-93 | TO-247-3 | SOT-93 | SOT-93 |
