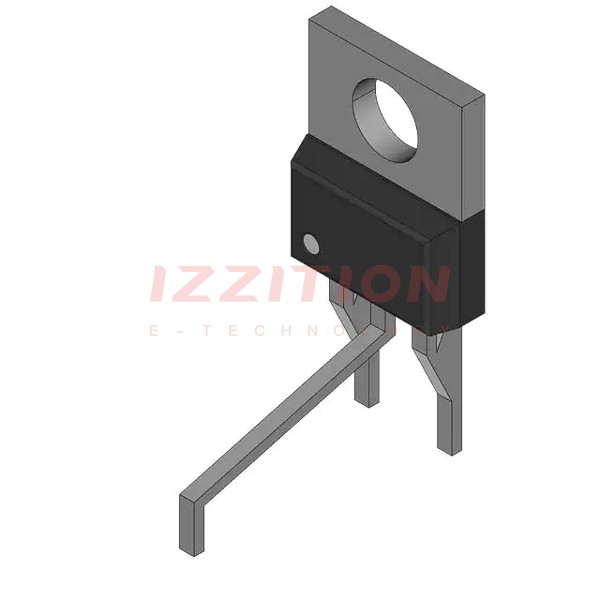

| Part Number | MJE200STU | MJE210STU | MJE200TSTU | MJE800STU | MJE700STU |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | PNP | NPN | NPN - Darlington | PNP - Darlington |
| Current - Collector (Ic) (Max) | 5 A | 5 A | 5 A | 4 A | 4 A |
| Voltage - Collector Emitter Breakdown (Max) | 25 V | 25 V | 25 V | 60 V | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 1.8V @ 1A, 5A | 1.8V @ 1A, 5A | 1.8V @ 1A, 5A | 2.5V @ 30mA, 1.5A | 2.5V @ 30mA, 1.5A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100µA | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 45 @ 2A, 1V | 45 @ 2A, 1V | 45 @ 2A, 1V | 750 @ 1.5A, 3V | 750 @ 1.5A, 3V |
| Power - Max | 15 W | 15 W | 15 W | 40 W | 40 W |
| Frequency - Transition | 65MHz | 65MHz | 65MHz | - | - |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-225AA, TO-126-3 | TO-225AA, TO-126-3 | TO-225AA, TO-126-3 | TO-225AA, TO-126-3 | TO-225AA, TO-126-3 |
| Supplier Device Package | TO-126-3 | TO-126-3 | TO-126-3 | TO-126-3 | TO-126-3 |
