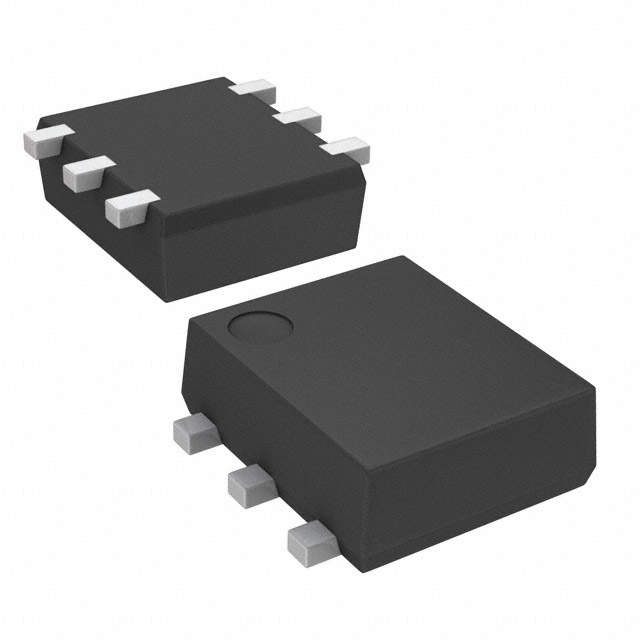

| Part Number | MCH6660-TL-W | MCH6663-TL-W | MCH6661-TL-W | MCH6664-TL-W | MCH6662-TL-W | MCH6660-TL-H |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N and P-Channel | N and P-Channel | 2 N-Channel (Dual) | 2 P-Channel (Dual) | 2 N-Channel (Dual) | N and P-Channel |
| FET Feature | Logic Level Gate, 1.8V Drive | Logic Level Gate, 4V Drive | Logic Level Gate, 4V Drive | Logic Level Gate | Logic Level Gate, 1.8V Drive | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 30V | 30V | 30V | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 2A, 1.5A | 1.8A, 1.5A | 1.8A | 1.5A | 2A | 2A, 1.5A |
| Rds On (Max) @ Id, Vgs | 136mOhm @ 1A, 4.5V | 188mOhm @ 900mA, 10V | 188mOhm @ 900mA, 10V | 325mOhm @ 800mA, 10V | 160mOhm @ 1A, 4.5V | 136mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA | 2.6V @ 1mA | 2.6V @ 1mA | 2.6V @ 1mA | 1.3V @ 1mA | - |
| Gate Charge (Qg) (Max) @ Vgs | 1.8nC @ 4.5V | 2nC @ 10V | 2nC @ 10V | 2.2nC @ 10V | 1.8nC @ 4.5V | 1.8nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 128pF @ 10V | 88pF @ 10V | 88pF @ 10V | 82pF @ 10V | 128pF @ 10V | 128pF @ 10V |
| Power - Max | 800mW | 800mW | 800mW | 800mW | 800mW | 800mW |
| Operating Temperature | 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, Flat Leads | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-SMD, Flat Leads |
| Supplier Device Package | 6-MCPH | SC-88FL/MCPH6 | SC-88FL/MCPH6 | SC-88FL/MCPH6 | SC-88FL/MCPH6 | 6-MCPH |
