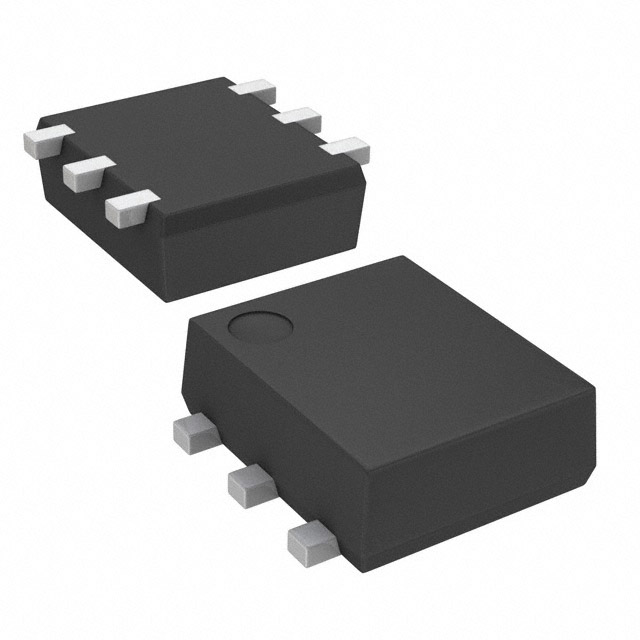

| Part Number | MCH6601-TL-E | MCH6631-TL-E | MCH6604-TL-E | MCH6605-TL-E | MCH6602-TL-E |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| FET Type | 2 P-Channel (Dual) | - | 2 N-Channel (Dual) | 2 P-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | - | Logic Level Gate | Logic Level Gate, 4V Drive | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | - | 50V | 50V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 200mA | - | 250mA | 140mA | 350mA |
| Rds On (Max) @ Id, Vgs | 10.4Ohm @ 50mA, 4V | - | 7.8Ohm @ 50mA, 4V | 22Ohm @ 40mA, 10V | 3.7Ohm @ 80mA, 4V |
| Vgs(th) (Max) @ Id | - | - | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 1.43nC @ 10V | - | 1.57nC @ 10V | 1.32nC @ 10V | 1.58nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 7.5pF @ 10V | - | 6.6pF @ 10V | 6.2pF @ 10V | 7pF @ 10V |
| Power - Max | 800mW | - | 800mW | 800mW | 800mW |
| Operating Temperature | 150°C (TJ) | - | 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, Flat Leads | - | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads |
| Supplier Device Package | 6-MCPH | - | 6-MCPH | 6-MCPH | 6-MCPH |
