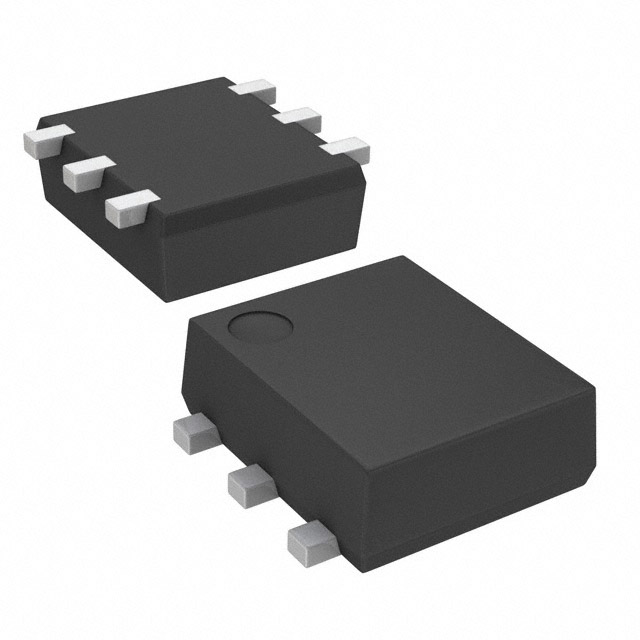

| Part Number | MCH6542-TL-E | MCH6545-TL-E | MCH6544-TL-E | MCH6541-TL-E |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active | Active |
| Transistor Type | NPN, PNP | NPN, PNP | 2 NPN (Dual) | NPN, PNP |
| Current - Collector (Ic) (Max) | 300mA | 500mA | 500mA | 700mA |
| Voltage - Collector Emitter Breakdown (Max) | 30V | 50V | 50V | 30V |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 5mA, 100mA | 100mV @ 10mA, 100mA | 100mV @ 10mA, 100mA | 190mV @ 10mA, 200mA, 220mV @ 10mA, 200mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 10mA, 2V | 300 @ 10mA, 2V | 300 @ 10mA, 2V | 300 @ 50mA, 2V / 200 @ 10mA, 2V |
| Power - Max | 55mW | 550mW | 550mW | 550mW |
| Frequency - Transition | 380MHz | 500MHz | 500MHz | 540MHZ, 520MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads |
| Supplier Device Package | 6-MCPH | 6-MCPH | 6-MCPH | 6-MCPH |
