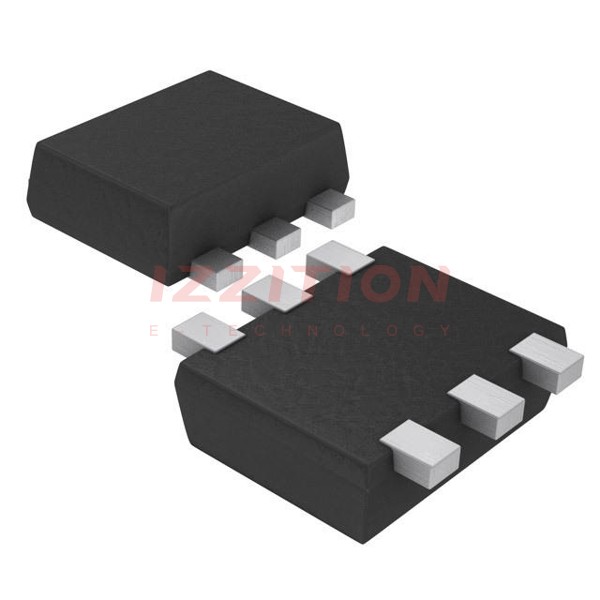

| Part Number | MCH6445-TL-E | MCH6445-TL-W |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) | 4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 78mOhm @ 2A, 10V | 78mOhm @ 2A, 10V |
| Vgs(th) (Max) @ Id | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 10 V | 10 nC @ 10 V |
| Vgs (Max) | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 505 pF @ 20 V | 505 pF @ 20 V |
| FET Feature | - | - |
| Power Dissipation (Max) | - | 1.5W (Ta) |
| Operating Temperature | - | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 6-MCPH | 6-MCPH |
| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads |
