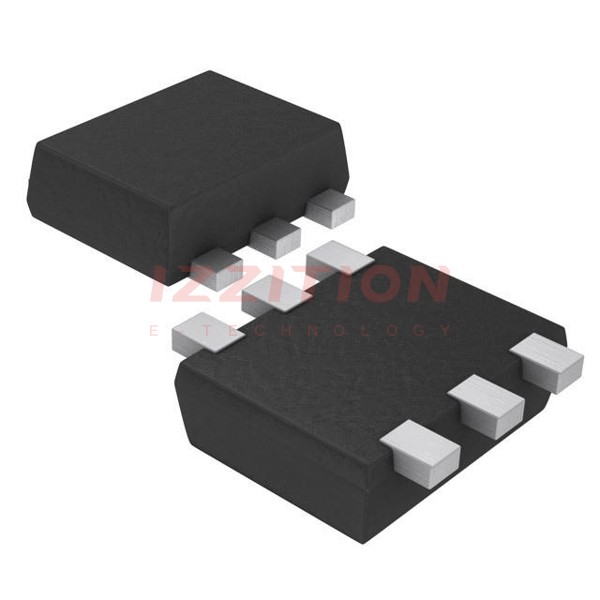

| Part Number | MCH6353-TL-W | MCH6351-TL-W |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta) | 9A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 3A, 4.5V | 16.9mOhm @ 4.5A, 4.5V |
| Vgs(th) (Max) @ Id | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 4.5 V | 20.5 nC @ 4.5 V |
| Vgs (Max) | ±10V | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1250 pF @ 6 V | 2200 pF @ 6 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.4W (Ta) | 1.5W (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 6-MCPH | 6-MCPH |
| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads |
