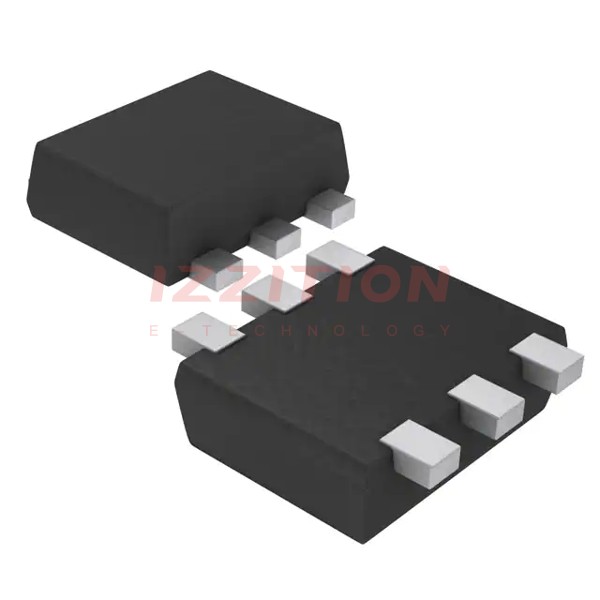

| Part Number | MCH6336-TL-W | MCH6337-TL-W | MCH6436-TL-W | MCH6331-TL-W | MCH6336-TL-E | MCH6336-TL-H |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | Sanyo | onsemi |
| Product Status | Active | Active | Active | Obsolete | Active | Obsolete |
| FET Type | P-Channel | P-Channel | N-Channel | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 20 V | 30 V | 30 V | 12 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) | 4.5A (Ta) | 6A (Ta) | 3.5A (Ta) | 5A (Ta) | 5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 1.8V, 4.5V | 1.8V, 4.5V | 4V, 10V | - | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 43mOhm @ 3A, 4.5V | 49mOhm @ 3A, 4.5V | 34mOhm @ 3A, 4.5V | 98mOhm @ 1.5A, 10V | 43mOhm @ 3A, 4.5V | 43mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 1.4V @ 1mA | 1.3V @ 1mA | 1.3V @ 1mA | 2.6V @ 1mA | 1.4V @ 1mA | - |
| Gate Charge (Qg) (Max) @ Vgs | 6.9 nC @ 4.5 V | 7.3 nC @ 4.5 V | 7.5 nC @ 4.5 V | 5 nC @ 10 V | 6.9 nC @ 4.5 V | 6.9 nC @ 4.5 V |
| Vgs (Max) | ±10V | ±10V | ±12V | ±20V | ±10V | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 660 pF @ 6 V | 670 pF @ 10 V | 710 pF @ 10 V | 250 pF @ 10 V | 660 pF @ 6 V | 660 pF @ 6 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 1.5W (Ta) | 1.5W (Ta) | 1.5W (Ta) | 1.5W (Ta) | 1.5W (Ta) | 1.5W (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-88FL/MCPH6 | 6-MCPH | SC-88FL/MCPH6 | SC-88FL/MCPH6 | SC-88FL/ MCPH6 | 6-MCPH |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-SMD, Flat Leads | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-SMD, Flat Leads | 6-SMD, Flat Leads |
