onsemi-MCH6336-TL-E-ON - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	43mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id:	1.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	6.9 nC @ 4.5 V
Vgs (Max):	±10V
Input Capacitance (Ciss) (Max) @ Vds:	660 pF @ 6 V
FET Feature:	-
Power Dissipation (Max):	1.5W (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SC-88FL/ MCPH6
Package / Case:	6-SMD, Flat Leads

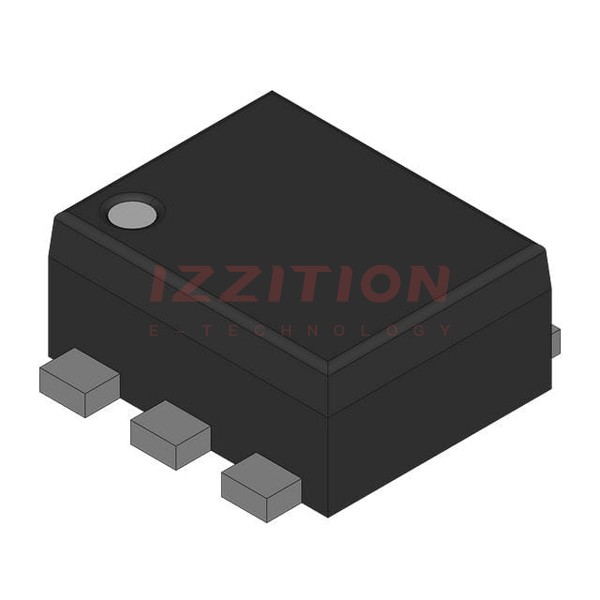

onsemi MCH6336-TL-E-ON
