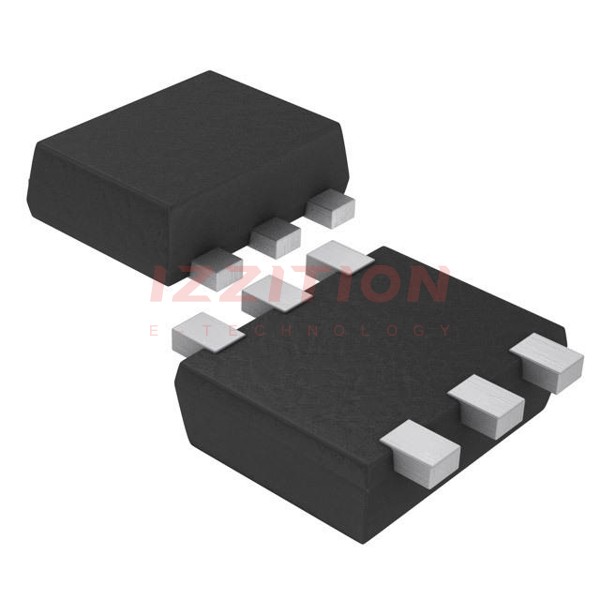

| Part Number | MCH6321-TL-W | MCH6341-TL-W | MCH6351-TL-W | MCH6331-TL-W | MCH6421-TL-W | MCH6320-TL-W | MCH6321-TL-E |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel | P-Channel | N-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 30 V | 12 V | 30 V | 20 V | 12 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) | 5A (Ta) | 9A (Ta) | 3.5A (Ta) | 5.5A (Ta) | 3.5A (Ta) | 4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 4V, 10V | 1.5V, 4.5V | 4V, 10V | 1.8V, 4.5V | 1.8V, 4.5V | - |
| Rds On (Max) @ Id, Vgs | 83mOhm @ 2A, 4.5V | 59mOhm @ 3A, 10V | 16.9mOhm @ 4.5A, 4.5V | 98mOhm @ 1.5A, 10V | 38mOhm @ 2A, 4.5V | 70mOhm @ 1.5A, 4.5V | 83mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | - | 2.6V @ 1mA | - | 2.6V @ 1mA | 1.3V @ 1mA | 1.4V @ 1mA | - |
| Gate Charge (Qg) (Max) @ Vgs | 4.6 nC @ 4.5 V | 10 nC @ 10 V | 20.5 nC @ 4.5 V | 5 nC @ 10 V | 5.1 nC @ 4.5 V | 5.6 nC @ 4.5 V | 4.6 nC @ 4.5 V |
| Vgs (Max) | ±10V | ±20V | ±10V | ±20V | ±12V | ±10V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 375 pF @ 10 V | 430 pF @ 10 V | 2200 pF @ 6 V | 250 pF @ 10 V | 410 pF @ 10 V | 405 pF @ 6 V | 375 pF @ 10 V |
| FET Feature | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 1.5W (Ta) | - | 1.5W (Ta) | 1.5W (Ta) | 1.5W (Ta) | 1.5W (Ta) | - |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-MCPH | 6-MCPH | 6-MCPH | SC-88FL/MCPH6 | SC-88FL/MCPH6 | SC-88FL/MCPH6 | 6-MCPH |
| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-SMD, Flat Leads |
