onsemi-MCH5839-TL-W - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	266mOhm @ 750mA, 4.5V
Vgs(th) (Max) @ Id:	1.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	1.7 nC @ 4.5 V
Vgs (Max):	±10V
Input Capacitance (Ciss) (Max) @ Vds:	120 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	800mW (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SC-88AFL/MCPH5
Package / Case:	5-SMD, Flat Leads

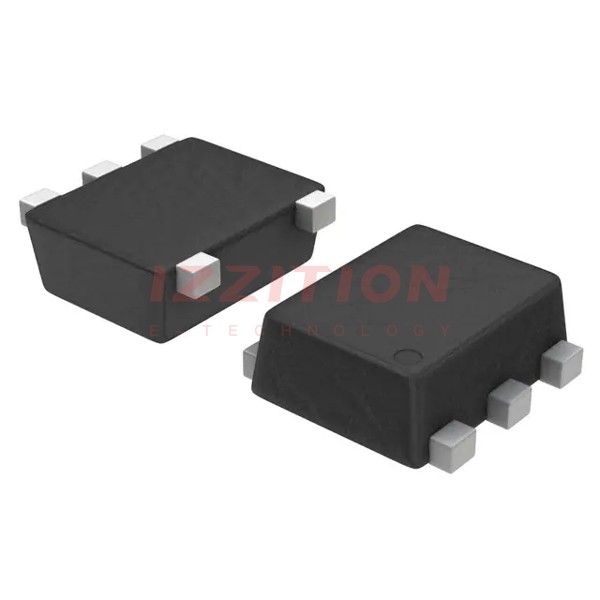

onsemi MCH5839-TL-W
