Please send RFQ , we will respond immediately.
| Part Number | MCH4017-TL-H | MCH4014-TL-H | MCH4015-TL-H | MCH4016-TL-H |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Transistor Type | NPN | NPN | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 12V | 12V | 12V | 12V |
| Frequency - Transition | 10GHz | 10GHz | 10GHz | 10GHz |
| Noise Figure (dB Typ @ f) | 1.2dB @ 1GHz | 1.2dB @ 1GHz | 1.2dB @ 1GHz | 1.2dB @ 1GHz |
| Gain | 17dB | 18dB | 17dB | 18dB |
| Power - Max | 450mW | 350mW | 450mW | 350mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 50mA, 5V | 60 @ 5mA, 5V | 60 @ 50mA, 5V | 60 @ 5mA, 5V |
| Current - Collector (Ic) (Max) | 100mA | 30mA | 100mA | 30mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

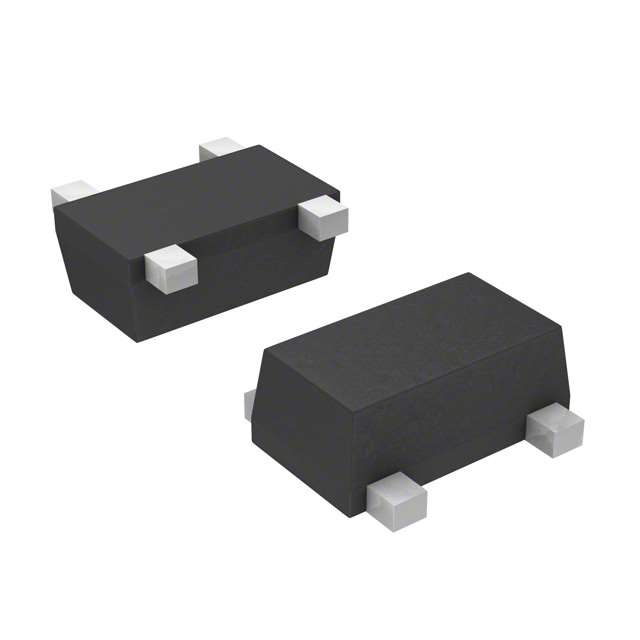

| Package / Case | SOT-343F | SOT-343F | SOT-343F | SOT-343F |
| Supplier Device Package | 4-MCPH | 4-MCPH | 4-MCPH | 4-MCPH |
