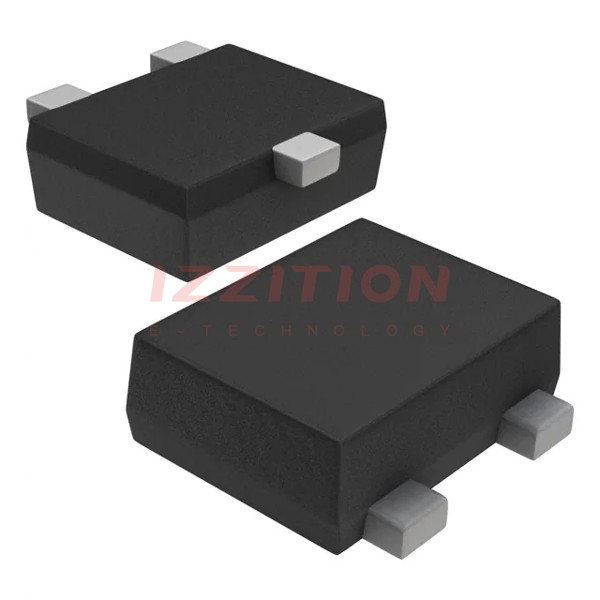

| Part Number | MCH3382-TL-W | MCH3383-TL-W | MCH3382-TL-H |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 12 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) | 3.5A (Ta) | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 0.9V, 2.5V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 198mOhm @ 1A, 4.5V | 69mOhm @ 1.5A, 2.5V | 198mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 900mV @ 1mA | 800mV @ 1mA | - |
| Gate Charge (Qg) (Max) @ Vgs | 2.3 nC @ 4.5 V | 6.2 nC @ 2.5 V | 2.3 nC @ 4.5 V |
| Vgs (Max) | ±9V | ±5V | ±9V |
| Input Capacitance (Ciss) (Max) @ Vds | 170 pF @ 6 V | 1010 pF @ 6 V | 170 pF @ 6 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 800mW (Ta) | 1W (Ta) | 800mW (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-70FL/MCPH3 | SC-70FL/MCPH3 | SC-70FL/MCPH3 |
| Package / Case | SOT-23-3 Flat Leads | SOT-23-3 Flat Leads | SOT-23-3 Flat Leads |
