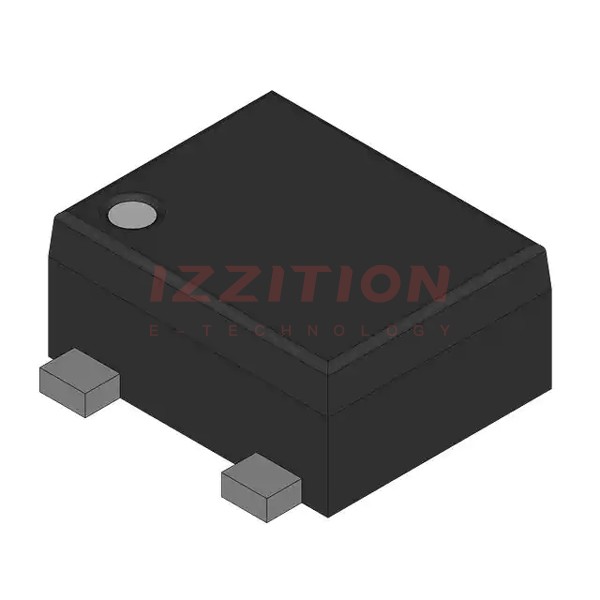

| Part Number | MCH3377-TL-E | MCH3477-TL-E | MCH3377-TL-H | MCH3377-TL-W | MCH3374-TL-E | MCH3376-TL-E |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Active | Not For New Designs |
| FET Type | P-Channel | N-Channel | P-Channel | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V | 20 V | 12 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) | 4.5A (Ta) | 3A (Ta) | 3A (Ta) | 3A (Ta) | 1.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 1.8V, 4.5V | - | 1.8V, 4.5V | 1.8V, 4V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 83mOhm @ 1.5A, 4.5V | 38mOhm @ 2A, 4.5V | 83mOhm @ 1.5A, 4.5V | 83mOhm @ 1.5A, 4.5V | 70mOhm @ 1.5A, 4.5V | 241mOhm @ 750mA, 4.5V |
| Vgs(th) (Max) @ Id | - | - | - | - | - | 1.4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 4.6 nC @ 4.5 V | 5.1 nC @ 4.5 V | 4.6 nC @ 4.5 V | 4.6 nC @ 4.5 V | 5.6 nC @ 4.5 V | 1.7 nC @ 4.5 V |
| Vgs (Max) | - | ±12V | - | ±10V | ±8V | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 375 pF @ 10 V | 410 pF @ 10 V | 375 pF @ 10 V | 375 pF @ 10 V | 405 pF @ 6 V | 120 pF @ 10 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | - | 1W (Ta) | - | 1W (Ta) | 1W (Ta) | 800mW (Ta) |
| Operating Temperature | - | 150°C (TJ) | - | 150°C (TJ) | - | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 3-MCPH | SC-70FL/MCPH3 | 3-MCPH | 3-MCPH | SC-70FL/MCPH3 | 3-MCPH |
| Package / Case | SC-70, SOT-323 | SOT-23-3 Flat Leads | SC-70, SOT-323 | SC-70, SOT-323 | SOT-23-3 Flat Leads | SC-70, SOT-323 |
