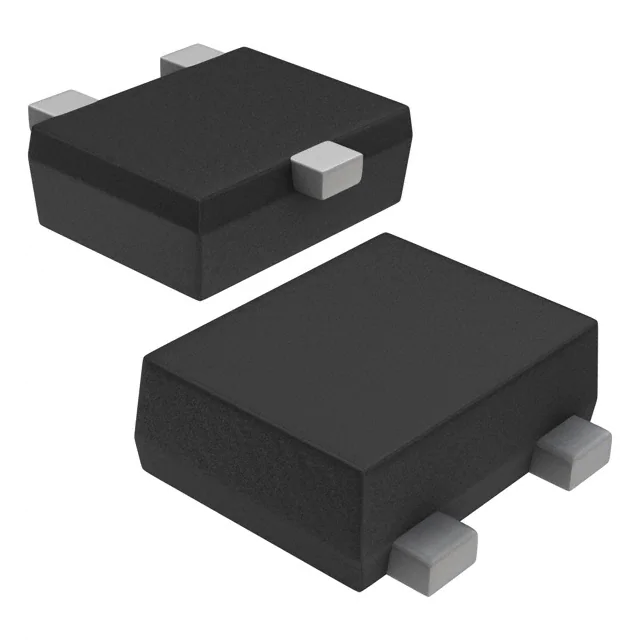

| Part Number | MCH3375-TL-H | MCH3377-TL-H | MCH3375-TL-W |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 20 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 1.6A (Tc) | 3A (Ta) | 1.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V | - | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 295mOhm @ 800mA, 10V | 83mOhm @ 1.5A, 4.5V | 295mOhm @ 800mA, 10V |
| Vgs(th) (Max) @ Id | - | - | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 2.2 nC @ 10 V | 4.6 nC @ 4.5 V | 2.2 nC @ 10 V |
| Vgs (Max) | ±20V | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 82 pF @ 10 V | 375 pF @ 10 V | 82 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 800mW (Ta) | - | 800mW (Ta) |
| Operating Temperature | 150°C (TJ) | - | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-70FL/MCPH3 | 3-MCPH | SC-70FL/MCPH3 |
| Package / Case | SOT-23-3 Flat Leads | SC-70, SOT-323 | SOT-23-3 Flat Leads |
