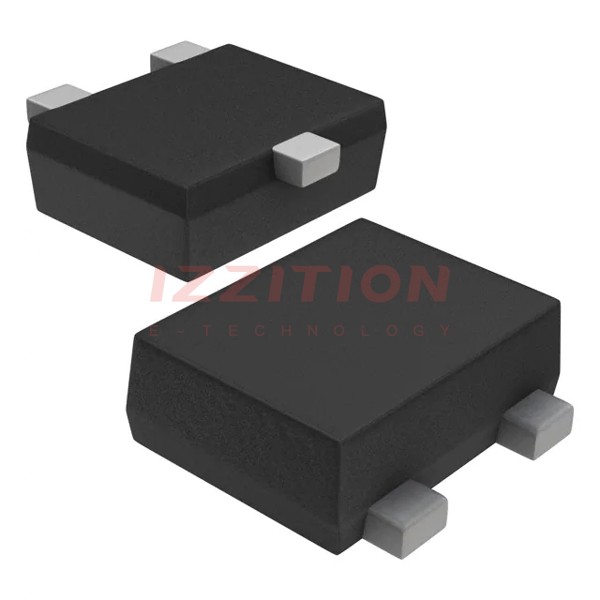

| Part Number | MCH3333A-TL-W | MCH3333A-TL-H |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Active |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4V | 1.8V, 4V |
| Rds On (Max) @ Id, Vgs | 215mOhm @ 1A, 4V | 215mOhm @ 1A, 4V |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA | - |
| Gate Charge (Qg) (Max) @ Vgs | 2.8 nC @ 4 V | 2.8 nC @ 4 V |
| Vgs (Max) | ±10V | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 240 pF @ 10 V | 240 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 900mW (Ta) | 900mW (Ta) |
| Operating Temperature | 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | SC-70FL/MCPH3 | SC-70FL/MCPH3 |
| Package / Case | SOT-23-3 Flat Leads | SOT-23-3 Flat Leads |
