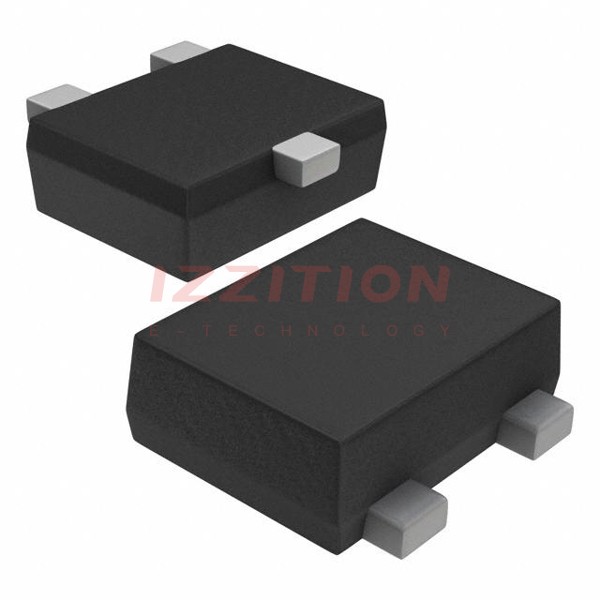

| Part Number | MCH3209-TL-E | MCH3109-TL-E | MCH3205-TL-E |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active |
| Transistor Type | NPN | PNP | NPN |
| Current - Collector (Ic) (Max) | 3 A | 3 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 30 V | 30 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 155mV @ 75mA, 1.5A | 155mV @ 75mA, 1.5A | 210mV @ 100mA, 2A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 2V | 200 @ 500mA, 2V | 200 @ 100mA, 2V |
| Power - Max | 800 mW | 800 mW | 800 mW |
| Frequency - Transition | 450MHz | 380MHz | 380MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 |
| Supplier Device Package | 3-MCPH | 3-MCPH | 3-MCPH |
